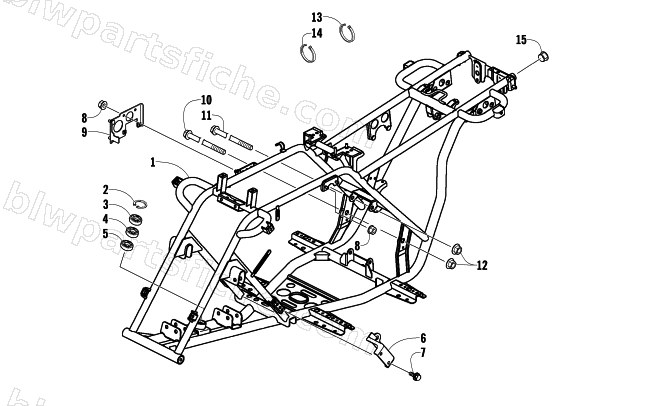

2009 Arctic Cat 150 UTILITY 2X4 AUTOMATIC — FRAME AND RELATED PARTS ASSEMBLY
2009 150 UTILITY 2X4 AUTOMATIC
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3305-704 | BODY COMP FRAME | 1 | $1,106.95 | |
| 2 | 3303-347 | CIR CLIP IN 32 | 1 | $2.61 | |
| 3 | 3303-295 | OIL SEAL 18*32*7 | 1 | $2.61 | |
| 4 | 3303-298 | OIL SEAL 22*35*7 | 1 | $3.02 | |
| 5 | 3303-392 | BEARING BALL RADIAL 6002 | 1 | $17.87 | |
| 6 | 3305-239 | BRKT ENG HANGER | 1 | $17.87 | |
| 7 | 3304-544 | BOLT FLANGE 8*12 | 1 | $1.78 | |
| 8 | 3303-331 | NUT FLANGE 6MM | 1 | $0.55 | |
| 9 | 3305-237 | STAY COIL & REG | 1 | $16.49 | |
| 10 | 3304-184 | BOLT FLANGE 10*160 | 1 | $5.51 | |
| 11 | 3305-705 | SCREW,CAP-HFH M10X1.25X100 | 1 | $3.57 | |
| 12 | 3304-031 | NUT U 10MM | 1 | $2.61 | |
| 13 | 3303-593 | BAND HARNESS WIRE | 1 | $1.50 | |
| 14 | 3303-289 | BAND OIL HANDLE | 1 | $1.95 | |
| 15 | 3305-242 | CAP RR GRIP END | 1 | $2.47 |
