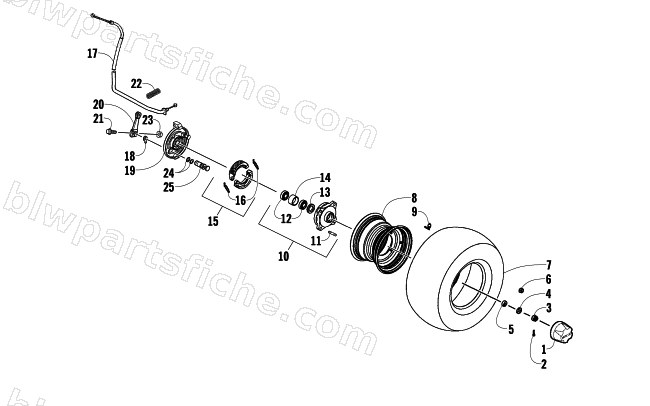

2009 Arctic Cat 150 UTILITY 2X4 AUTOMATIC — FRONT WHEEL AND BRAKE ASSEMBLIES
2009 150 UTILITY 2X4 AUTOMATIC
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-931 | CAP WHEEL | 1 | $10.97 | |
| 2 | 3303-340 | PIN SPLIT 3*30 | 1 | $1.37 | |
| 3 | 3303-330 | NUT FLANGE CASTLE 14MM | 1 | $4.54 | |
| 4 | 3305-124 | WASHER 14MM | 1 | $2.33 | |
| 5 | 3305-108 | COLLAR FR WHEEL SIDE | 1 | $3.71 | |
| 6 | 3304-028 | NUT WHEEL | 1 | $2.61 | |
| 7 | 3305-112 | TIRE ASSY FR (KENDA) | 1 | $159.95 | |
| 8 | 3303-902 | RIM COMP FR WHEEL (DARK GRAY) | 1 | $140.95 | |
| 9 | 3303-887 | R/B 3304-562 | 1 | $12.95 | |
| 10 | 3305-109 | HUB ASSY FR | 1 | $112.95 | |
| 11 | 3305-126 | BOLT STUD II 10*21 | 1 | $3.02 | |
| 12 | 3303-468 | BEARING BALL RADIAL 6003/17*35*10 | 1 | $20.63 | |
| 13 | 3303-456 | DUST SEAL 22*35*7 | 1 | $1.78 | |
| 14 | 3305-110 | COLLAR FR DIST | 1 | $6.75 | |
| 15 | 3305-720 | SHOE ASSY FR | 1 | $37.95 | |
| 16 | 3305-116 | SPG BRAKE SHOE | 1 | $1.92 | |
| 17 | 3305-077 | CABLE COMP FR BRK R | 1 | $20.63 | |
| 17 | 3305-079 | CABLE COMP FR BRK L | 1 | $20.63 | |
| 18 | 3305-118 | CAM FR BRAKE | 1 | $17.87 | |
| 19 | 3305-114 | PANEL COMP FR RH | 1 | $69.95 | |
| 19 | 3305-121 | PANEL COMP FR LH | 1 | $69.95 | |
| 20 | 3305-120 | ARM FR BRK RH | 1 | $13.73 | |
| 20 | 3305-122 | ARM FR BRK LH | 1 | $16.49 | |
| 21 | 3303-611 | R/B 3307-214 | 1 | $0.65 | |
| 22 | 3303-172 | SPG BRK ARM RETURN | 1 | $2.33 | |
| 23 | 3303-331 | NUT FLANGE 6MM | 1 | $0.55 | |
| 24 | 3305-125 | SEAL OIL 41*51*5 | 1 | $3.02 | |
| 25 | 3305-119 | INDICATOR FR BRK | 1 | $1.78 |
