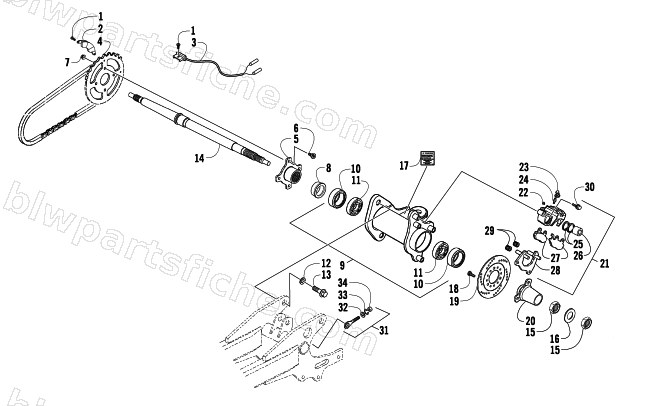

2009 Arctic Cat 150 UTILITY 2X4 AUTOMATIC — REAR AXLE AND BRAKE ASSEMBLY
2009 150 UTILITY 2X4 AUTOMATIC
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3305-069 | SENSOR MAGNET WHEEL RPM | 1 | $12.35 | |
| 3 | 3305-068 | SENSOR WHEEL RPM | 1 | $20.63 | |
| 4 | 3305-722 | SPRKT FINAL DRIVEN | 1 | $112.95 | |
| 5 | 3305-129 | HOLDER SPROCKET | 1 | $50.95 | |
| 6 | 3305-142 | BOLT STUD 10*20 | 1 | $1.78 | |
| 7 | 3304-031 | NUT U 10MM | 1 | $2.61 | |
| 8 | 3305-132 | COLLAR RR SIDE | 1 | $16.49 | |
| 9 | 3305-133 | HUB ASSY RR | 1 | $169.95 | |
| 10 | 3305-144 | SEAL DUST | 1 | $4.40 | |
| 11 | 3305-145 | BEARING BALL RADIAL 6907 | 1 | $90.95 | |
| 12 | 3303-281 | WASHER 12.2*28*4 | 1 | $1.50 | |
| 13 | 3303-379 | BOLT FLANGE 12*28MM | 1 | $3.57 | |
| 14 | 3305-131 | SHAFT RR WHEEL | 1 | $212.95 | |
| 15 | 3305-141 | NUT RR SHAFT | 1 | $10.97 | |
| 16 | 3305-127 | DISK SPRING | 1 | $5.37 | |
| 17 | 1411-942 | DECAL,WARNING-TOWING (300 LBS.) | 1 | $2.75 | |
| 18 | 3303-253 | BOLT DISK | 1 | $3.57 | |
| 19 | 3303-162 | DISK RR BRAKE | 1 | $112.95 | |
| 20 | 3305-138 | BRACKET BRAKE DISK | 1 | $79.95 | |
| 21 | 3303-568 | CALIPER ASSY RR | 1 | $180.79 | |
| 22 | 3304-333 | PLUG | 1 | $1.95 | |
| 23 | 3304-303 | CAP BLEEDER | 1 | $3.02 | |
| 24 | 3304-302 | SCREW BLEEDER | 1 | $3.30 | |
| 25 | 3305-380 | SEAL PISTON (FOOT BRAKE) | 1 | $16.49 | |
| 26 | 3304-314 | PISTON (FOOT BRAKE) | 1 | $58.95 | |
| 27 | 3304-567 | PAD COMP | 1 | $47.95 | |
| 28 | 3303-469 | BRACKET RR | 1 | $20.63 | |
| 29 | 3304-322 | BOOT A | 1 | $3.16 | |
| 30 | 3303-256 | BOLT FLANGE 8*28 | 1 | $2.61 | |
