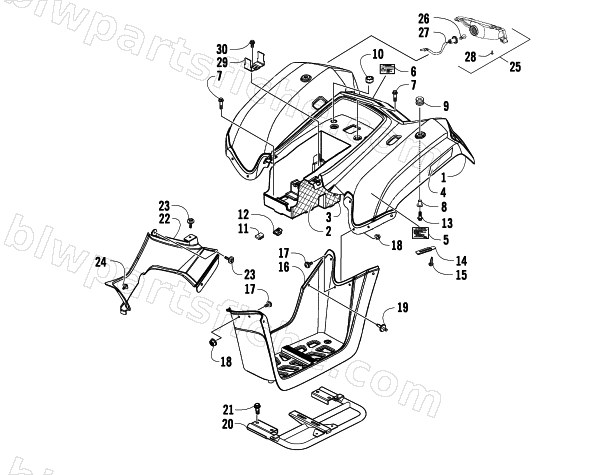

2009 Arctic Cat 150 UTILITY 2X4 AUTOMATIC — REAR BODY PANEL AND TAILLIGHT ASSEMBLIES
2009 150 UTILITY 2X4 AUTOMATIC
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3305-763 | R/B 3305-162 | 1 | $159.95 | |
| 2 | 3305-163 | HEAT GUARD A RR FENDER | 1 | $20.63 | |
| 3 | 3305-164 | HEAT GUARD B RR FENDER | 1 | $10.97 | |
| 4 | 1411-178 | REFLECTOR,REAR-RH | 1 | $13.73 | |
| 4 | 1411-179 | REFLECTOR,REAR-LH | 1 | $13.73 | |
| 5 | 1411-939 | DECAL,WARNING-TIRE/LOAD (150) | 1 | $12.35 | |
| 6 | 1411-809 | DECAL,WARNING-PASSENGER | 1 | $3.30 | |
| 7 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 8 | 3303-233 | COLLAR FLOOR | 1 | $2.33 | |
| 9 | 3303-227 | RUBBER WIND SCREEN | 1 | $1.92 | |
| 10 | 3303-232 | RUBBER REAR FENDER | 1 | $1.92 | |
| 11 | 3304-061 | NUT CLIP 5MM | 1 | $2.33 | |
| 12 | 3303-267 | NUT CLIP 6MM **0000 C.97.07.26. | 1 | $1.23 | |
| 13 | 3304-586 | BOLT WASHER 6*20 | 1 | $1.23 | |
| 14 | 3304-156 | CLIP 2*70 | 1 | $1.92 | |
| 15 | 3304-121 | SCREW TAPPING 4*12 | 1 | $0.85 | |
| 16 | 3305-932 | MUDGUARD,R FLOOR | 1 | $82.95 | |
| 16 | 3305-933 | MUDGUARD,L FLOOR | 1 | $82.95 | |
| 17 | 3305-703 | SCREW SPECIAL 6*20 | 1 | $1.78 | |
| 18 | 3304-431 | NUT LOCK | 1 | $1.23 | |
| 19 | 3305-448 | CLIP,MUDGUARD | 1 | $2.33 | |
| 20 | 3305-160 | STAY R FLOOR PANEL | 1 | $69.95 | |
| 20 | 3305-161 | STAY L FLOOR PANEL | 1 | $69.95 | |
| 21 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 | |
| 22 | 3305-167 | COVER R SIDE | 1 | $32.95 | |
| 22 | 3305-168 | R/B 3305-935 | 1 | $32.95 | |
| 23 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 | |
| 24 | 3303-592 | CLIP MUDGUARD | 1 | $2.33 | |
| 25 | 3305-732 | LIGHT ASSY TAIL RH | 1 | $94.95 | |
| 25 | 3305-733 | LIGHT ASSY TAIL LH | 1 | $94.95 | |
| 26 | 3303-849 | BULB TAIL & STOP 12V21W/5W | 1 | $12.35 | |
| 27 | 3305-731 | HARNESS, TAILLIGHT | 1 | $11.95 | |
| 28 | 3304-645 | SCREW TAPPING 5*12 | 1 | $1.23 | |
| 29 | 3305-238 | BRKT START MAG SW | 1 | $5.37 | |
| 30 | 3303-308 | BOLT HEX 5*12 | 1 | $0.81 |
