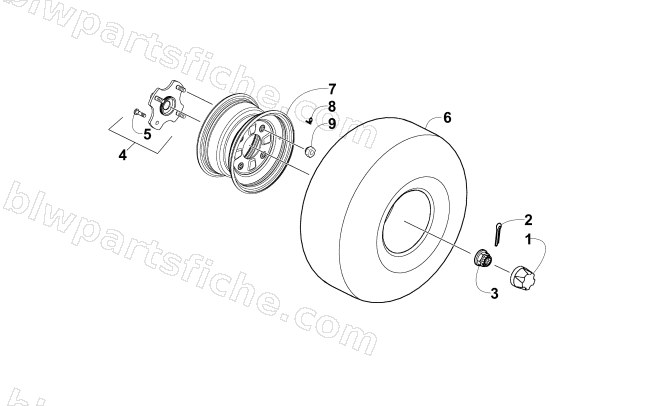

2009 Arctic Cat 150 UTILITY 2X4 AUTOMATIC — REAR WHEEL ASSEMBLY
2009 150 UTILITY 2X4 AUTOMATIC
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-931 | CAP WHEEL | 1 | $10.97 | |
| 2 | 3303-340 | PIN SPLIT 3*30 | 1 | $1.37 | |
| 3 | 3305-211 | NUT CASTLE 10MM | 1 | $3.30 | |
| 4 | 3304-296 | CONNECTOR RR WHEEL | 1 | $90.95 | |
| 5 | 3304-014 | BOLT CONNECTOR | 1 | $3.02 | |
| 6 | 3303-885 | TIRE ASSY RR/KENDA AT22 10-10 4P TL | 1 | $180.95 | |
| 7 | 3303-883 | RIM COMP RR WHEEL (DARK GRAY) | 1 | $144.95 | |
| 8 | 3303-887 | R/B 3304-562 | 1 | $12.95 | |
| 9 | 3304-028 | NUT WHEEL | 1 | $2.61 |
