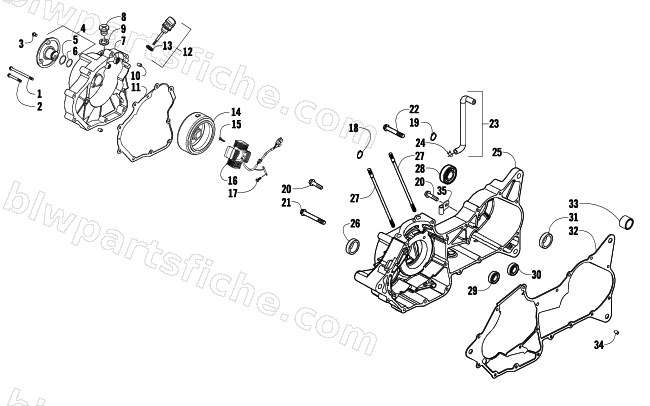

2009 Arctic Cat 150 UTILITY 2X4 AUTOMATIC — RIGHT CRANKCASE AND COVER ASSEMBLY
2009 150 UTILITY 2X4 AUTOMATIC
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3304-192 | BOLT FLANGE 6*125 | 1 | $1.50 | |
| 2 | 3303-387 | BOLT FLANGE SH 6*45 | 1 | $3.95 | |
| 3 | 3303-381 | BOLT FLANGE SH 6*12 | 1 | $0.81 | |
| 4 | 3305-742 | CAP ASSY R COVER | 1 | $35.95 | |
| 5 | 3304-971 | O RING 26.5*2.0 | 1 | $2.06 | |
| 6 | 3304-596 | O-RING 23X2.4 | 1 | $1.64 | |
| 7 | 3304-963 | COVER COMP RIGHT | 1 | $231.95 | |
| 8 | 3304-012 | CAP ACG A.C.G. | 1 | $3.30 | |
| 9 | 3304-099 | O-RING 13.8*2.5 | 1 | $2.33 | |
| 10 | 3303-342 | PIN DOWEL 10*16 | 1 | $1.64 | |
| 11 | 3304-964 | GASKET R COVER @ A | 1 | $23.39 | |
| 12 | 3303-050 | GAUGE ASSY OIL LEVEL | 1 | $6.75 | |
| 13 | 3304-102 | O-RING 18*3 | 1 | $1.78 | |
| 14 | 3304-965 | FLYWHEEL COMP | 1 | $212.95 | |
| 15 | 3304-113 | BOLT HEX 5*25 | 1 | $2.06 | |
| 16 | 3304-967 | STATOR COMP | 1 | $187.95 | |
| 17 | 3304-118 | SCREW PAN 5*16 | 1 | $0.85 | |
| 18 | 3303-344 | CIR CLIP EX/20MM | 1 | $1.37 | |
| 19 | 3304-514 | CIRCLIP | 1 | $4.13 | |
| 20 | 3304-190 | R/B 3305-945 | 1 | $0.65 | |
| 21 | 3304-904 | BOLT FLANGE 6*60 | 1 | $1.23 | |
| 22 | 3307-053 | BOLT FLANGE SH 6*40 | 1 | $2.75 | |
| 23 | 3304-889 | TUBE ASSY MISSION BREATHER | 1 | $10.97 | |
| 24 | 3304-433 | CLIP B14.5 TUBE | 1 | $1.37 | |
| 25 | 3304-884 | CASE R COMP CRANK | 1 | $405.95 | |
| 26 | 3304-081 | OIL SEAL 14*28*7 | 1 | $2.33 | |
| 27 | 3304-008 | BOLT STUD 8MM | 1 | $5.51 | |
| 28 | 3304-195 | BRG RADIAL BALL 6205 | 1 | $20.63 | |
| 29 | 3304-699 | BRG BALL RADIAL 6204 | 1 | $20.63 | |
| 30 | 3304-909 | BRG BALL RADIAL 6302 | 1 | $20.63 | |
| 31 | 3304-425 | OIL SEAL 24.8*52.2*7 | 1 | $17.87 | |
| 32 | 3304-887 | GASKET CRANK CASE @ A | 1 | $37.95 | |
| 33 | 3304-898 | BRG NEEDLE 30*42*17 | 1 | $79.95 | |
| 35 | 3304-972 | CLAMPER CARB DRAIN | 1 | $2.47 |
