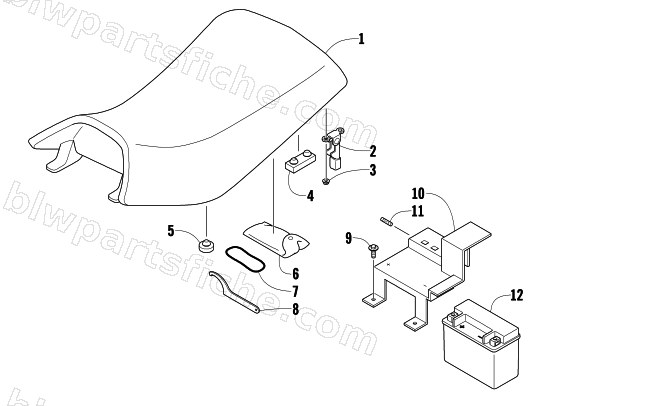

SEAT, BATTERY, AND TOOL KIT ASSEMBLIES
2009 150 UTILITY 2X4 AUTOMATIC
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3305-729 | SEAT ASSY | 1 | $292.95 | |
| 2 | 3304-392 | HOOK ASSY SEAT LOCK | 1 | $26.95 | |
| 3 | 3303-331 | NUT FLANGE 6MM | 1 | $0.55 | |
| 5 | 3304-568 | RUBBER SEAT CUSHION | 1 | $1.92 | |
| 6 | 3305-730 | TOOL SET | 1 | $47.95 | |
| 7 | 3303-242 | BAND TOOL SET | 1 | $1.64 | |
| 8 | 1441-797 | WRENCH,SPANNER | 1 | $0.00 | |
| 9 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 | |
| 10 | 3305-157 | COVER ASSY BATTERY | 1 | $26.95 | |
| 11 | 3305-233 | BLADE FUSE 20A | 1 | $2.47 | |
| 12 | 3445-034 | BATTERY ASSY,YTX9-BS,12V,8AH | 1 | $169.95 |
