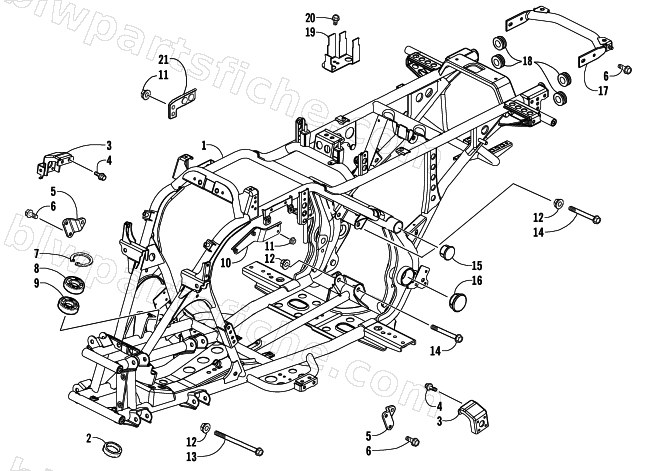

2009 Arctic Cat 250 UTILITY 2X4 AUTOMATIC — FRAME AND RELATED PARTS ASSEMBLY
2009 250 UTILITY 2X4 AUTOMATIC
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-933 | BODY COMP FRAME | 1 | $1,307.95 | |
| 2 | 3304-064 | DUST SEAL 27*40*6 | 1 | $3.16 | |
| 3 | 3303-942 | RH STAY FR CARRIER | 1 | $26.95 | |
| 3 | 3303-943 | LH STAY FR CARRIER | 1 | $17.87 | |
| 4 | 3304-553 | BOLT FLANGE 6*12 | 1 | $0.81 | |
| 5 | 3303-938 | BRACKET ENG HANGER | 1 | $10.97 | |
| 6 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 | |
| 7 | 3304-150 | CIR CLIP IN 40 | 1 | $2.33 | |
| 8 | 3304-203 | BEARING BALL RADIAL 6203/17*40*12 | 1 | $23.39 | |
| 9 | 3303-298 | OIL SEAL 22*35*7 | 1 | $3.02 | |
| 10 | 3303-935 | STAY CATCH TANK | 1 | $16.49 | |
| 11 | 3304-654 | NUT FLANGE 6MM | 1 | $1.23 | |
| 12 | 3323-178 | NUT,HEX FL CLINCH LOCK M10-1.25 Z&Y | 1 | $2.61 | |
| 13 | 3304-184 | BOLT FLANGE 10*160 | 1 | $5.51 | |
| 14 | 3304-183 | SCREW,CAP-HFH M10X1.25X85 | 1 | $2.59 | |
| 15 | 3304-658 | CAP PIPE | 1 | $1.64 | |
| 16 | 3303-999 | CAP PIPE | 1 | $3.16 | |
| 17 | 3303-936 | PIPE CROSS RR CARRIER | 1 | $50.95 | |
| 18 | 3303-239 | RUBBER TAIL LIGHT | 1 | $1.64 | |
| 19 | 3303-934 | STAY START MAG SW | 1 | $10.97 | |
| 20 | 3304-409 | BOLT WASHER 5*12 | 1 | $0.81 | |
| 21 | 3304-655 | STAY STOP SW | 1 | $10.97 |
