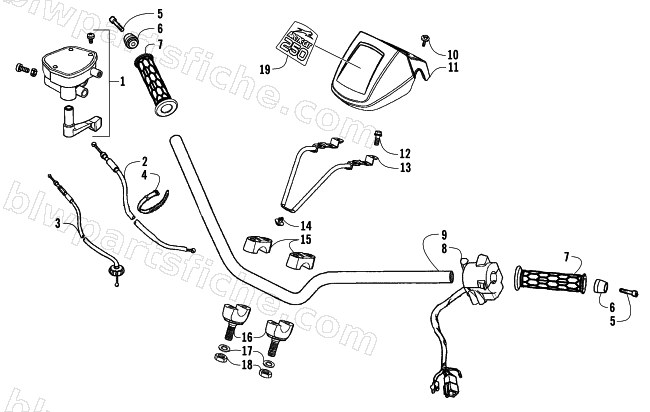

2009 Arctic Cat 250 UTILITY 2X4 AUTOMATIC — HANDLEBAR AND CONTROLS ASSEMBLY
2009 250 UTILITY 2X4 AUTOMATIC
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-953 | LEVER ASSY THROTTLE | 1 | $150.95 | |
| 2 | 3305-462 | CABLE COMP CHOKE | 1 | $17.87 | |
| 3 | 3305-414 | CABLE COMP THROT | 1 | $20.63 | |
| 4 | 3303-839 | BAND WIRE HARNESS B1 | 1 | $2.33 | |
| 5 | 3304-016 | BOLT WASHER 8MM | 1 | $4.54 | |
| 6 | 3305-541 | END STRG HNDL | 1 | $20.63 | |
| 7 | 3305-905 | GRIP,HANDLE-4040 SPEC | 1 | $13.73 | |
| 8 | 3303-852 | SW ASSY LH HANDLE COMP | 1 | $150.95 | |
| 9 | 3305-457 | HANDLE PIPE STRG-BLACK | 1 | $126.95 | |
| 10 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 | |
| 11 | 3303-958 | COVER HANDLE (RED) | 1 | $33.95 | |
| 12 | 3305-400 | BOLT WASHER 8*35 | 1 | $1.23 | |
| 13 | 3303-951 | STAY HANDLE COVER | 1 | $30.95 | |
| 14 | 3304-552 | CLIP MUDGUARD | 1 | $1.64 | |
| 15 | 3303-954 | HOLDER HANDLE PIPE | 1 | $10.97 | |
| 16 | 3303-955 | HOLDER UNDER HNDL PIPE | 1 | $33.95 | |
| 17 | 3305-088 | WASHER PLAIN 10MM | 1 | $0.81 | |
| 18 | 3303-325 | NUT HEX 10MM | 1 | $0.81 | |
| 19 | 1411-622 | DECAL,POD-250 UTILITY | 1 | $30.95 |
