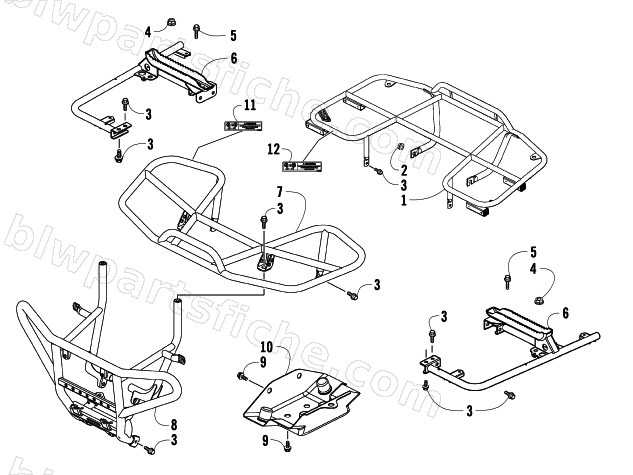

2009 Arctic Cat 250 UTILITY 2X4 AUTOMATIC — RACKS AND BUMPER ASSEMBLY
2009 250 UTILITY 2X4 AUTOMATIC
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3305-464 | RR CARRIER LUGGAGE | 1 | $324.95 | |
| 2 | 3304-668 | NUT FLANGE 8MM | 1 | $0.81 | |
| 3 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 | |
| 4 | 3303-332 | NUT FLANGE 8MM | 1 | $0.81 | |
| 5 | 3303-616 | BOLT FLANGE 8*35 | 1 | $1.78 | |
| 6 | 3303-939 | STAY R FLOOR PANEL | 1 | $66.95 | |
| 6 | 3303-940 | STAY L FLOOR PANEL | 1 | $69.95 | |
| 7 | 3303-988 | FRONT CARRIER LUGGAGE | 1 | $227.95 | |
| 8 | 3304-001 | PIPE COMP FR BUMPER | 1 | $309.95 | |
| 9 | 3304-544 | BOLT FLANGE 8*12 | 1 | $1.78 | |
| 10 | 3303-871 | PLATE ASSY SKID | 1 | $85.95 | |
| 11 | 0411-576 | DECAL,WARNING-TRV RACK (100 LB.) | 1 | $24.77 | |
| 12 | 0411-201 | DECAL,GRAPHIC 2X-FR RED | 1 | $25.95 |
