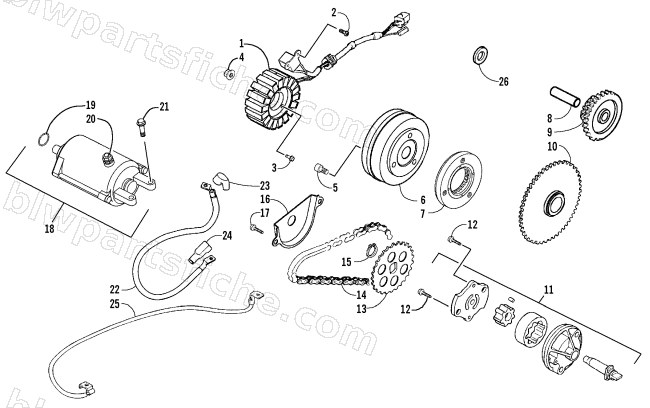

2009 Arctic Cat 250 UTILITY 2X4 AUTOMATIC — STARTER MOTOR AND MAGNETO ASSEMBLY
2009 250 UTILITY 2X4 AUTOMATIC
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-833 | STATOR COMP (D406) | 1 | $196.95 | |
| 2 | 3304-118 | SCREW PAN 5*16 | 1 | $0.85 | |
| 3 | 3304-111 | R/B 3307-225 | 1 | $0.85 | |
| 4 | 3304-024 | NUT,FLANGE 14MM | 1 | $2.33 | |
| 5 | 3304-208 | BOLT SOCKET 8*15 | 1 | $1.78 | |
| 6 | 3303-832 | FLYWHEEL COMP (D406) | 1 | $156.95 | |
| 7 | 3305-412 | ONE WAY CLUTCH | 1 | $309.95 | |
| 8 | 3303-825 | SHAFT STARTER REDUCTION GEAR | 1 | $3.71 | |
| 9 | 3303-824 | GEAR STARTER REDUCTION | 1 | $37.95 | |
| 10 | 3305-411 | GEAR COMP STARTING CLUTCH | 1 | $82.95 | |
| 11 | 3303-687 | PUMP ASSY OIL | 1 | $54.95 | |
| 12 | 3303-385 | BOLT FLANGE SH 6*28 | 1 | $0.81 | |
| 13 | 3303-688 | SPRKT OIL PUMP DRIVE | 1 | $17.87 | |
| 14 | 3303-690 | CHAIN OIL PUMP DRIVE A | 1 | $33.95 | |
| 15 | 3304-146 | CIR EXTERNAL 10MM | 1 | $0.95 | |
| 16 | 3303-697 | SEPARATER OIL | 1 | $5.37 | |
| 17 | 3303-381 | BOLT FLANGE SH 6*12 | 1 | $0.81 | |
| 18 | 3304-274 | MOTOR UNIT STARTER | 1 | $298.95 | |
| 19 | 3304-104 | O-RING 24.4*3.1 | 1 | $1.95 | |
| 20 | 3304-011 | NUT WASH 6MM | 1 | $0.81 | |
| 21 | 3304-002 | BOLT FLANGE SHF 6*22 | 1 | $0.81 | |
| 22 | 3304-277 | CABLE STARTER MOTOR | 1 | $50.95 | |
| 23 | 3305-251 | BOOT,STARTING MOTOR TERMINAL | 1 | $3.57 | |
| 24 | 3305-252 | BOOT,STARTER SOLENOID | 1 | $3.57 | |
| 25 | 3303-842 | CABLE EARTH | 1 | $37.95 | |
| 26 | 3304-036 | WASHER THRUST 14*28*2 | 1 | $1.50 |
