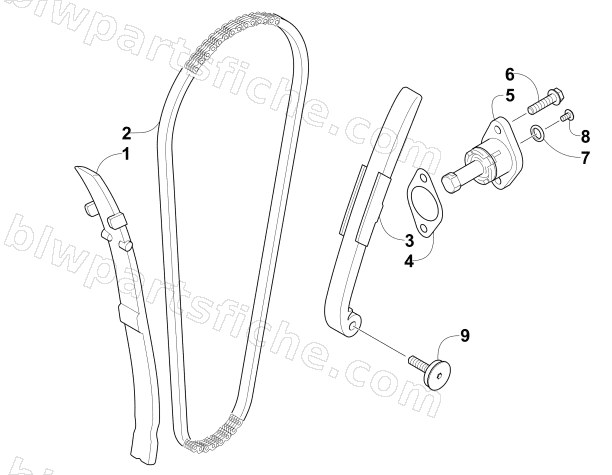

2009 Arctic Cat 300 DVX 2X4 AUTO SPORT — CAM CHAIN ASSEMBLY
2009 300 DVX 2X4 AUTO SPORT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3305-692 | GUIDE COMP CAM CHAIN | 1 | $17.87 | |
| 2 | 3305-620 | CHAIN CAM | 1 | $90.95 | |
| 3 | 3305-622 | TENSIONER CAM CHAIN | 1 | $42.95 | |
| 4 | 3303-035 | GASKET TENSIONER LIFTER | 1 | $3.44 | |
| 5 | 3307-102 | LIFTER ASSY TENSIONER | 1 | $42.95 | |
| 6 | 3304-002 | BOLT FLANGE SHF 6*22 | 1 | $0.81 | |
| 7 | 3304-100 | O-RING 1.5*9.5 | 1 | $1.78 | |
| 9 | 3303-678 | PIVOT CAM CHAIN TENSIONER | 1 | $6.89 |
