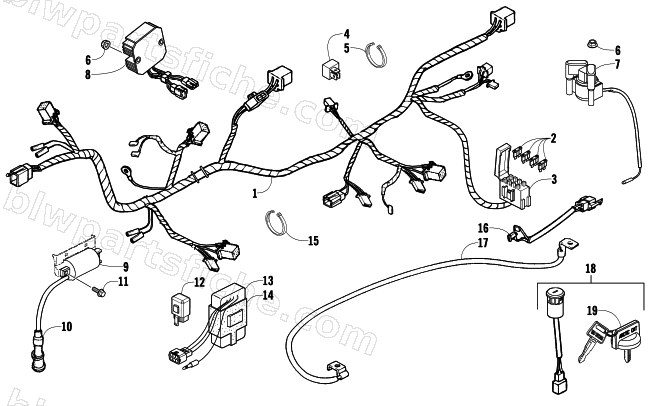

2009 Arctic Cat 300 DVX 2X4 AUTO SPORT — ELECTRICAL AND WIRING HARNESS ASSEMBLY
2009 300 DVX 2X4 AUTO SPORT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3304-276 | HARNESS WIRE | 1 | $235.95 | |
| 2 | 3304-210 | BLADE FUSE 10A | 1 | $4.95 | |
| 2 | 3304-211 | BLADE FUSE 15A | 1 | $4.95 | |
| 2 | 3304-212 | BLADE FUSE 30A | 1 | $4.95 | |
| 3 | 3303-866 | BOX COMP FUSE | 1 | $5.78 | |
| 4 | 3303-837 | RECTIFIER COMP DIODE | 1 | $20.63 | |
| 5 | 3303-289 | BAND OIL HANDLE | 1 | $1.95 | |
| 6 | 3303-331 | NUT FLANGE 6MM | 1 | $0.55 | |
| 7 | 3303-857 | SET START MAG | 1 | $58.95 | |
| 8 | 3304-681 | REG REC COMP | 1 | $129.95 | |
| 9 | 3303-830 | COIL ASSY IGNITION | 1 | $94.95 | |
| 10 | 3305-425 | CAP ASSY NOISE SUPPRESSOR | 1 | $30.95 | |
| 11 | 3303-382 | BOLT FLANGE 6*16MM | 1 | $0.81 | |
| 12 | 3303-867 | RELAY ASSY LIGHT | 1 | $47.95 | |
| 13 | 3303-829 | UNIT ASSY IGNITION | 1 | $316.95 | |
| 15 | 3303-840 | BAND WIRE | 1 | $0.55 | |
| 16 | 3303-134 | SUB CORD | 1 | $6.47 | |
| 17 | 3304-278 | CABLE BATTERY | 1 | $20.63 | |
| 18 | 3303-850 | IGNITION SWITCH-ASSY | 1 | $58.95 | |
| 19 | 3304-522 | KEY COVER-ARCTIC CAT | 1 | $4.13 | |
| 19 | 3307-104 | KEY COMP / TJ / R CUT | 1 | $6.89 | |
| 19 | 3304-521 | R/B 3307-105 | 1 | $13.95 |
