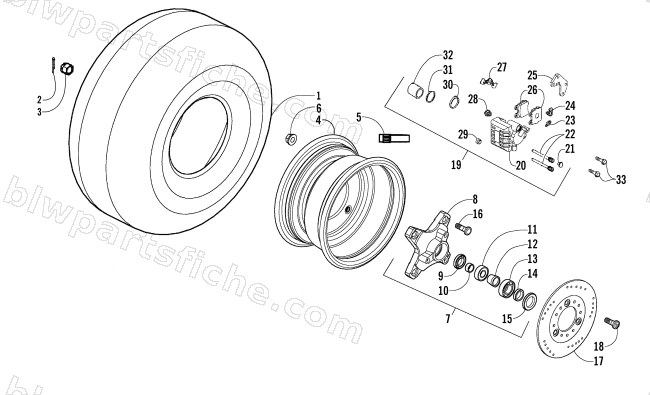

2009 Arctic Cat 300 DVX 2X4 AUTO SPORT — FRONT WHEELS AND BRAKE ASSEMBLY
2009 300 DVX 2X4 AUTO SPORT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3304-312 | TIRE ASSY FR (KENDA) | 1 | $172.95 | |
| 2 | 3303-340 | PIN SPLIT 3*30 | 1 | $1.37 | |
| 3 | 3303-330 | NUT FLANGE CASTLE 14MM | 1 | $4.54 | |
| 4 | 3304-310 | RIM FR WHEEL | 1 | $252.95 | |
| 5 | 3303-887 | R/B 3304-562 | 1 | $12.95 | |
| 6 | 3304-028 | NUT WHEEL | 1 | $2.61 | |
| 7 | 3304-311 | CONNECTOR ASSY FR | 1 | $169.95 | |
| 9 | 3304-089 | OIL SEAL 20*35*7 | 1 | $2.33 | |
| 10 | 3303-898 | COLLAR FR WHEEL SIDE A | 1 | $5.51 | |
| 11 | 3304-200 | BEARING BALL RADIAL 6004/20*42*12 | 1 | $30.95 | |
| 12 | 3303-900 | COLLAR FR WHEEL DIST | 1 | $8.21 | |
| 13 | 3304-202 | BEARING BALL RADIAL 6202/15*35*11 | 1 | $16.49 | |
| 14 | 3303-899 | COLLAR FR WHEEL SIDE B | 1 | $6.75 | |
| 15 | 3304-088 | OIL SEAL 28*42*7 | 1 | $2.33 | |
| 16 | 3304-014 | BOLT CONNECTOR | 1 | $3.02 | |
| 17 | 3303-912 | DISK FR BRK R | 1 | $108.95 | |
| 17 | 3303-918 | DISK FR BRK L | 1 | $90.95 | |
| 18 | 3304-015 | BOLT STEP HOLDER 8*24 | 1 | $2.33 | |
| 19 | 3304-313 | CALIPER ASSY FR R | 1 | $405.95 | |
| 19 | 3303-921 | CALIPER ASSY FR L | 1 | $405.95 | |
| 21 | 3304-334 | PLUG | 1 | $2.33 | |
| 22 | 3304-326 | PIN HANGER | 1 | $6.89 | |
| 23 | 3304-330 | BLEEDER | 1 | $5.92 | |
| 24 | 3304-331 | CAP BLEEDER | 1 | $2.06 | |
| 25 | 3304-317 | BRACKET ASSY R | 1 | $58.95 | |
| 25 | 3304-328 | BRACKET ASSY L | 1 | $58.95 | |
| 26 | 3303-908 | PAD SET | 1 | $58.95 | |
| 27 | 3304-315 | SPRING PAD | 1 | $4.82 | |
| 28 | 3304-322 | BOOT A | 1 | $3.16 | |
| 29 | 3304-329 | BUSH PIN | 1 | $5.37 | |
| 30 | 3303-922 | SEAL PISTON (HAND BRAKE) | 1 | $10.97 | |
| 31 | 3303-910 | DUST SEAL (HAND BRAKE) | 1 | $10.97 | |
| 32 | 3303-909 | PISTON, CALIPER (HAND BRAKE) | 1 | $27.95 | |
| 33 | 3304-174 | R/B 3304-565 | 1 | $1.95 |
