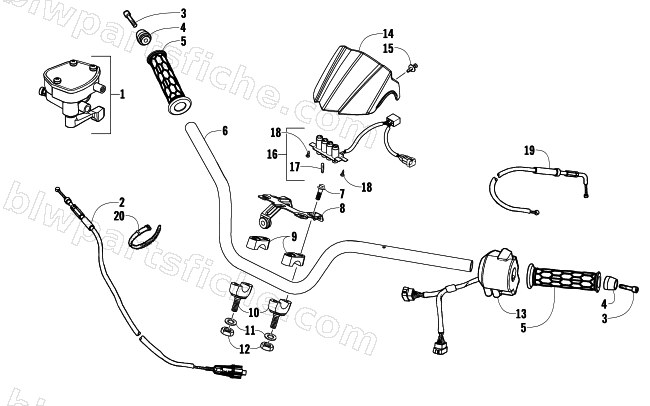

2009 Arctic Cat 300 DVX 2X4 AUTO SPORT — HANDLEBAR AND CONTROLS ASSEMBLY
2009 300 DVX 2X4 AUTO SPORT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-953 | LEVER ASSY THROTTLE | 1 | $150.95 | |
| 2 | 3305-414 | CABLE COMP THROT | 1 | $20.63 | |
| 3 | 3304-016 | BOLT WASHER 8MM | 1 | $4.54 | |
| 4 | 3305-541 | END STRG HNDL | 1 | $20.63 | |
| 5 | 3305-905 | GRIP,HANDLE-4040 SPEC | 1 | $13.73 | |
| 6 | 3304-367 | HANDLE PIPE STRG-SILVER | 1 | $85.95 | |
| 7 | 3305-400 | BOLT WASHER 8*35 | 1 | $1.23 | |
| 8 | 3304-368 | STAY HANDLE COVER | 1 | $30.95 | |
| 9 | 3303-954 | HOLDER HANDLE PIPE | 1 | $10.97 | |
| 10 | 3303-955 | HOLDER UNDER HNDL PIPE | 1 | $33.95 | |
| 11 | 3305-088 | WASHER PLAIN 10MM | 1 | $0.81 | |
| 12 | 3303-325 | NUT HEX 10MM | 1 | $0.81 | |
| 13 | 3303-852 | SW ASSY LH HANDLE COMP | 1 | $150.95 | |
| 14 | 3303-436 | COVER HANDLE (BLACK) | 1 | $17.87 | |
| 15 | 3303-592 | CLIP MUDGUARD | 1 | $2.33 | |
| 16 | 3304-285 | PILOT LAMP COMP | 1 | $84.95 | |
| 17 | 3304-284 | BULB WEDGE BASE T5 | 1 | $2.75 | |
| 18 | 3304-650 | SCREW TAPPING 5*16 (CIRCLE HEAD) | 1 | $1.50 | |
| 19 | 3305-462 | CABLE COMP CHOKE | 1 | $17.87 | |
| 20 | 3303-839 | BAND WIRE HARNESS B1 | 1 | $2.33 |
