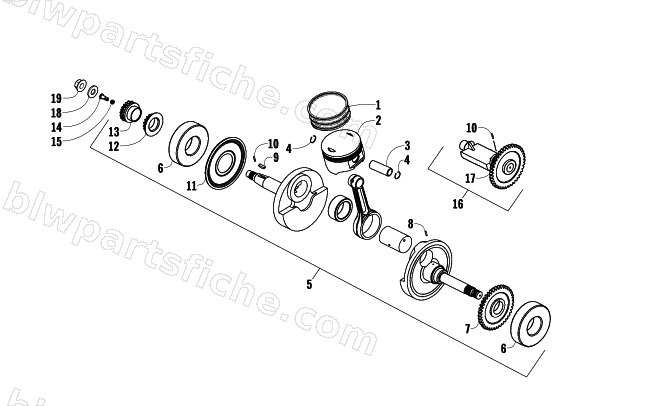

2009 Arctic Cat 300 DVX 2X4 AUTO SPORT — PISTON AND CRANKSHAFT ASSEMBLY
2009 300 DVX 2X4 AUTO SPORT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 3305-752 | ENGINE (SPORT 300) 2009 | 1 | $4,857.95 | |
| 1 | 3303-664 | RING SET PISTON | 1 | $79.95 | |
| 2 | 3305-625 | PISTON | 1 | $64.95 | |
| 3 | 3305-623 | PIN PISTON | 1 | $16.49 | |
| 4 | 3304-159 | CLIP PISTON PIN 17MM | 1 | $1.78 | |
| 5 | 3305-619 | CRANK SHAFT COMP | 1 | $1,075.95 | |
| 6 | 3304-420 | BRG BALL RADIAL 6307 | 1 | $122.95 | |
| 7 | 3304-234 | GEAR BALANCER DRIVE | 1 | $126.95 | |
| 8 | 3304-962 | ROLLER 2*11.8 | 1 | $1.95 | |
| 9 | 3304-145 | WOODRUFF KEY 25*14 | 1 | $3.16 | |
| 10 | 3304-439 | ROLLER 4*8 | 1 | $1.23 | |
| 11 | 3305-328 | PLATE R CRANK SIDE | 1 | $5.95 | |
| 12 | 3304-236 | GEAR TIMING | 1 | $64.95 | |
| 13 | 3303-689 | GEAR OIL PUMP DRIVE | 1 | $66.95 | |
| 14 | 3303-693 | OIL THROUGH | 1 | $5.51 | |
| 15 | 3303-694 | SPG OIL THROUGH | 1 | $3.16 | |
| 16 | 3305-624 | SHAFT,COMP BALANCER | 1 | $180.95 | |
| 18 | 3304-036 | WASHER THRUST 14*28*2 | 1 | $1.50 | |
| 19 | 3304-024 | NUT,FLANGE 14MM | 1 | $2.33 |
