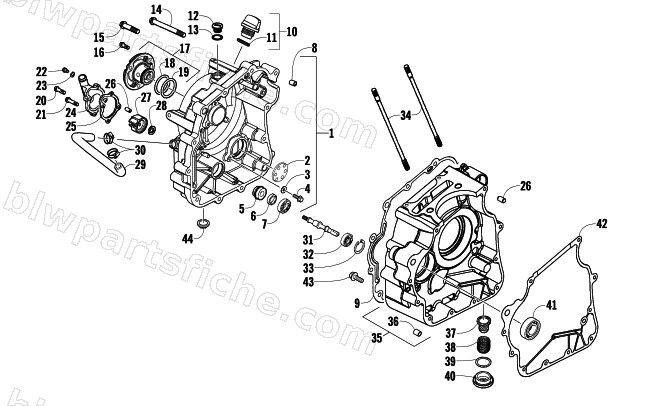

2009 Arctic Cat 300 DVX 2X4 AUTO SPORT — RIGHT CRANKCASE AND COVER ASSEMBLY
2009 300 DVX 2X4 AUTO SPORT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3305-626 | COVER COMP R CRANK CASE | 1 | $461.95 | |
| 2 | 3303-696 | FINDER OIL LEVEL | 1 | $20.63 | |
| 3 | 3304-037 | WASHER 33*6.4*2 | 1 | $1.95 | |
| 4 | 3304-005 | BOLT SPECIAL 6*10 96600-08010 N.C. | 1 | $1.50 | |
| 5 | 3303-751 | SEAL MECHANICAL | 1 | $25.95 | |
| 6 | 3304-078 | OIL SEAL 12*20*4 | 1 | $2.33 | |
| 7 | 3304-068 | BEARING BALL RADIAL 6901 12*24*6 | 1 | $37.95 | |
| 8 | 3303-342 | PIN DOWEL 10*16 | 1 | $1.64 | |
| 9 | 3303-641 | GASKET R COVER | 1 | $17.87 | |
| 10 | 3303-695 | GAUGE OIL LEVEL ASSY | 1 | $20.63 | |
| 11 | 3304-102 | O-RING 18*3 | 1 | $1.78 | |
| 12 | 3304-012 | CAP ACG A.C.G. | 1 | $3.30 | |
| 13 | 3304-099 | O-RING 13.8*2.5 | 1 | $2.33 | |
| 14 | 3304-192 | BOLT FLANGE 6*125 | 1 | $1.50 | |
| 15 | 3303-387 | BOLT FLANGE SH 6*45 | 1 | $3.95 | |
| 16 | 3303-382 | BOLT FLANGE 6*16MM | 1 | $0.81 | |
| 17 | 3304-013 | CAP ASSY R COVER | 1 | $37.95 | |
| 18 | 3304-096 | O-RING 30.8MM | 1 | $1.78 | |
| 19 | 3304-098 | O RING 27.4*2.1 | 1 | $2.33 | |
| 20 | 3303-619 | BOLT FLANGE SH 6*22 | 1 | $0.81 | |
| 21 | 3303-385 | BOLT FLANGE SH 6*28 | 1 | $0.81 | |
| 22 | 3304-186 | BOLT FLANGE SH 6*10 | 1 | $0.95 | |
| 23 | 3304-049 | WASHER A 6MM | 1 | $0.81 | |
| 24 | 3303-752 | COVER WATER PUMP | 1 | $26.95 | |
| 25 | 3303-753 | GASKET WATER PUMP | 1 | $3.16 | |
| 26 | 3303-341 | PIN DOWEL 8*14 | 1 | $2.33 | |
| 27 | 3303-750 | IMPELLER WATER PUMP | 1 | $20.63 | |
| 28 | 3304-038 | WASHER 7.2*13*1.2 | 1 | $0.81 | |
| 29 | 3303-758 | HOSE B WATER | 1 | $13.73 | |
| 30 | 3304-165 | CLIP WATER HOSE | 1 | $3.71 | |
| 31 | 3303-754 | SHAFT WATER PUMP | 1 | $23.39 | |
| 32 | 3304-193 | BEARING BALL RADIAL 6000/10*26*8 | 1 | $17.87 | |
| 33 | 3304-148 | CIR CLIP INTERAL 26MM | 1 | $1.78 | |
| 34 | 3304-008 | BOLT STUD 8MM | 1 | $5.51 | |
| 35 | 3305-605 | CRANK CASE COMP R | 1 | $387.95 | |
| 36 | 3304-065 | CONE TYPE PLUG 6*7 | 1 | $1.37 | |
| 37 | 3303-691 | SCREEN OIL FILTER | 1 | $5.51 | |
| 38 | 3303-692 | SPG OIL FILTER SCREEN | 1 | $33.95 | |
| 40 | 3303-021 | HOLE CAP TAPPET ADJUSTING **9000 C.97.09 | 1 | $16.49 | |
| 41 | 3304-195 | BRG RADIAL BALL 6205 | 1 | $20.63 | |
| 42 | 3303-628 | GASKET CRANK CASE A | 1 | $20.63 | |
| 43 | 3304-191 | R/B 3307-062 | 1 | $0.65 | |
| 44 | 3304-052 | BOLT DRAIN PLUG SPECIAL | 1 | $3.02 |
