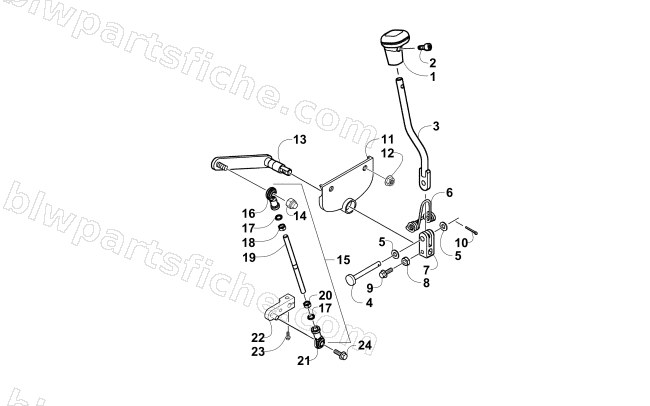

2009 Arctic Cat 300 DVX 2X4 AUTO SPORT — SHIFT LEVER ASSEMBLY
2009 300 DVX 2X4 AUTO SPORT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-823 | COVER CHANGE HANDLE | 1 | $12.35 | |
| 2 | 3304-401 | SOCKET BOLT 5*12 | 1 | $1.92 | |
| 3 | 3304-458 | BAR CHANGE HNDL | 1 | $20.63 | |
| 4 | 3303-817 | PIN CHANGE HANDLE | 1 | $2.61 | |
| 5 | 3304-135 | WASHER PLAIN 8MM | 1 | $0.85 | |
| 6 | 3303-818 | SPRING CHANGE HANDLE | 1 | $16.49 | |
| 7 | 3303-819 | BRKT CHANGE HANDLE | 1 | $33.95 | |
| 8 | 3305-340 | R/B 3307-774 | 1 | $0.65 | |
| 9 | 3304-438 | BOLT FLANGE SH 6*16 | 1 | $0.81 | |
| 10 | 3304-142 | PIN SPLIT 2*15 | 1 | $1.37 | |
| 11 | 3304-271 | STAY CHANGE HNDL ASSY | 1 | $26.95 | |
| 12 | 3303-332 | NUT FLANGE 8MM | 1 | $0.81 | |
| 13 | 3305-644 | SHAFT COMP CHANGE | 1 | $35.95 | |
| 14 | 3305-792 | NUT CAP 8MM | 1 | $3.02 | |
| 15 | 3305-778 | ROD ASSY,SHIFT | 1 | $90.95 | |
| 16 | 3304-377 | JOINT R BALL | 1 | $33.95 | |
| 17 | 3303-607 | WASHER SPRING 8MM | 1 | $0.81 | |
| 18 | 3304-125 | NUT HEX 8MM | 1 | $0.81 | |
| 19 | 3304-273 | ROD CHANGE HNDL | 1 | $90.95 | |
| 20 | 3304-430 | NUT HEX 8MM L | 1 | $2.61 | |
| 21 | 3304-378 | JOINT L BALL | 1 | $33.95 | |
| 22 | 3305-543 | GEAR CHANGE HNDL | 1 | $47.95 | |
| 23 | 3304-112 | R/B 3307-085 | 1 | $2.95 | |
| 24 | 3304-176 | BOLT FLANGE 8*28 | 1 | $1.50 |
