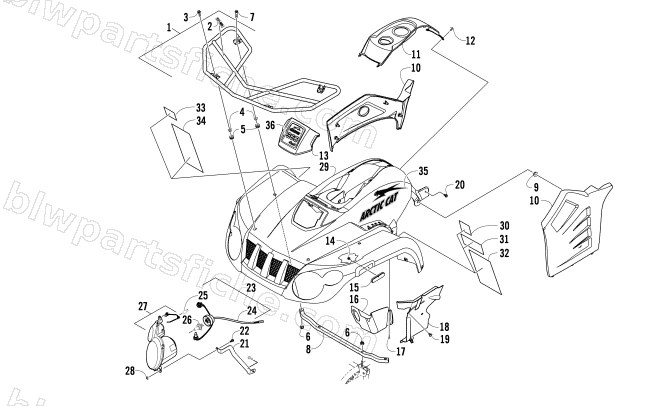

2009 Arctic Cat 366 4X4 AUTOMATIC — FRONT BODY, RACK, AND HEADLIGHT ASSEMBLY
2009 366 4X4 AUTOMATIC
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3313-372 | RACK,FRONT-ASSEMBLY | 1 | $227.95 | |
| 2 | 1411-681 | DECAL,WARNING RACK (75LB) | 1 | $19.25 | |
| 3 | 3313-522 | BOLT,M8*25 | 1 | $1.78 | |
| 4 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 5 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 6 | 3304-668 | NUT FLANGE 8MM | 1 | $0.81 | |
| 7 | 3313-713 | BOLT,FLANGE 8*50 | 1 | $3.02 | |
| 8 | 3313-469 | TUBE,REAR MOUNT-FRONT RACK-PAINTED | 1 | $20.63 | |
| 9 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 10 | 3313-752 | PANEL,SIDE-RH | 1 | $66.95 | |
| 10 | 3313-193 | R/B 3313-753 | 1 | $48.95 | |
| 11 | 3313-190 | COVER,TANK-FUEL(MARSH) | 1 | $13.73 | |
| 11 | 3313-188 | COVER,TANK-FUEL(RED) | 1 | $13.73 | |
| 12 | 3304-057 | CLIP FENDER | 1 | $1.92 | |
| 13 | 3313-268 | COVER,ELECTRICAL (MARSH) | 1 | $13.73 | |
| 13 | 3313-266 | COVER,ELECTRICAL (RED) | 1 | $13.73 | |
| 14 | 3304-774 | NUT FLANGE 5MM(G) | 1 | $0.81 | |
| 15 | 3313-359 | REFLECTOR,FRONT (OVAL) | 1 | $13.73 | |
| 16 | 3313-466 | SHIELD,LINKAGE | 1 | $13.73 | |
| 17 | 3304-650 | SCREW TAPPING 5*16 (CIRCLE HEAD) | 1 | $1.50 | |
| 18 | 3313-444 | PANEL,SPLASH-RH | 1 | $22.95 | |
| 18 | 3313-445 | PANEL,SPLASH-LH | 1 | $23.39 | |
| 19 | 3303-592 | CLIP MUDGUARD | 1 | $2.33 | |
| 20 | 3305-783 | BOLT WASHER 8*16 | 1 | $3.02 | |
| 21 | 3313-492 | BRACKET,SUPPORT-HEADLIGHT-RH-PAINTED | 1 | $16.49 | |
| 21 | 3313-493 | BRACKET,SUPPORT-HEADLIGHT-LH-PAINTED | 1 | $16.49 | |
| 22 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 | |
| 23 | 3313-516 | HEADLIGHT-RH-ASSY(SAE) | 1 | $227.95 | |
| 23 | 3313-517 | HEADLIGHT-LH-ASSY(SAE) | 1 | $220.95 | |
| 24 | 3313-173 | ASSY, SOCKET-HEADLIGHT (SAE) | 1 | $47.95 | |
| 25 | 3313-508 | BULB,BACKUP(R5W -12V 5W) (CLEAR) | 1 | $6.75 | |
| 26 | 3303-846 | BULB HEAD LIGHT | 1 | $42.95 | |
| 27 | 3313-249 | ASSY, CLIP-RETAIN H. LIGHT (RH-SAE) | 1 | $163.95 | |
| 27 | 3313-495 | UNIT HEAD LIGHT L | 1 | $148.95 | |
| 28 | 3304-061 | NUT CLIP 5MM | 1 | $2.33 | |
| 29 | 3313-724 | PANEL,FENDER-FRONT-GREEN (ASSY) | 1 | $405.95 | |
| 29 | 3313-723 | PANEL,FENDER-FRONT-RED (ASSY) | 1 | $393.95 | |
| 30 | 0411-835 | DECAL,WARNING HILL | 1 | $4.95 | |
| 31 | 1411-804 | DECAL,WARNING-AGE (16) | 1 | $4.95 | |
| 32 | 1411-932 | DECAL,WARNING-GENERAL | 1 | $12.35 | |
| 33 | 1411-574 | DECAL,WARNING-OFF ROAD ONLY | 1 | $3.30 | |
| 34 | 1411-250 | DECAL,WARNING-PRE RIDE(AE) | 1 | $12.35 | |
| 35 | 1411-634 | DECAL,SIDE-ARCTIC CAT-RH(A&B BODY) | 1 | $19.25 | |
| 35 | 1411-635 | DECAL,SIDE-ARCTIC CAT-LH(A&B BODY) | 1 | $19.25 | |
| 36 | 1411-691 | DECAL,POD-366 | 1 | $30.95 |
