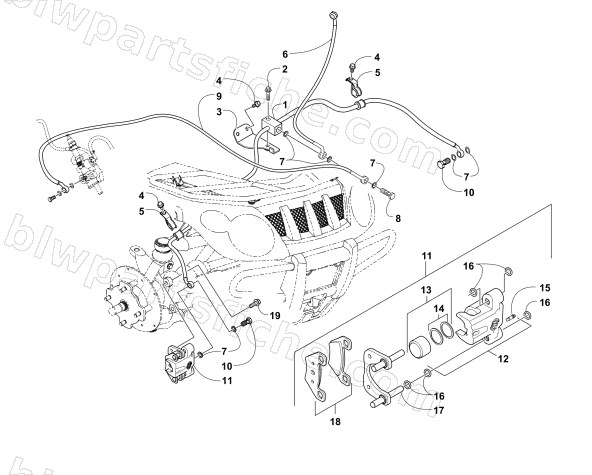

2009 Arctic Cat 366 4X4 AUTOMATIC — HYDRAULIC BRAKE ASSEMBLY
2009 366 4X4 AUTOMATIC
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3313-750 | ASSEMBLY,BRAKE HOSE(JUNCTION) | 1 | $163.95 | |
| 2 | 3303-361 | BOLT FLANGE 6*30 (RB 3305-789) | 1 | $0.65 | |
| 3 | 3313-523 | BRACKET,BRAKE HOSE JUNCTION | 1 | $5.78 | |
| 4 | 3304-553 | BOLT FLANGE 6*12 | 1 | $0.81 | |
| 5 | 3303-919 | CLAMP FR BRK HOSE | 1 | $4.82 | |
| 6 | 3313-422 | HOSE,BRAKE(MC-JUNCTION) | 1 | $108.95 | |
| 7 | 3303-284 | WASHER OIL BOLT **(1) C.98.06.01. | 1 | $1.23 | |
| 8 | 3304-674 | OIL BOLT 10*33 | 1 | $13.73 | |
| 9 | 3313-423 | HOSE,BRAKE(JUNCTION-DIRM) | 1 | $122.95 | |
| 10 | 3303-257 | R/B 3307-067 | 1 | $5.95 | |
| 11 | 1436-422 | R/B 2502-574 | 1 | $190.95 | |
| 11 | 1436-423 | R/B 2502-575 | 1 | $432.95 | |
| 12 | 1436-160 | KIT-HOUSING,PISTONS,SEALS,BLEADER-RH | 1 | $266.95 | |
| 12 | 1436-161 | KIT-HOUSING,PISTONS,SEALS,BLEADER-LH | 1 | $268.95 | |
| 13 | 0502-606 | SET,PISTONS/SEALS | 1 | $90.95 | |
| 15 | 0502-609 | BLEEDER,CALIPER (FC) | 1 | $26.95 | |
| 16 | 0502-608 | GUIDE,O-RINGS-CALIPER (FC) | 1 | $30.95 | |
| 17 | 0502-605 | BRACKET,ASSEMBLY | 1 | $124.95 | |
| 18 | 1436-420 | KIT-PAD,BRAKE-SET | 1 | $62.95 | |
| 19 | 3305-785 | BOLT FLANGE 8*20 | 1 | $3.02 |
