Home ATV 2009 400 TRV STARTER MOTOR ASSEMBLY

STARTER MOTOR ASSEMBLY

2009 400 TRV

Scroll / pinch to zoom · drag to pan · double-click resets

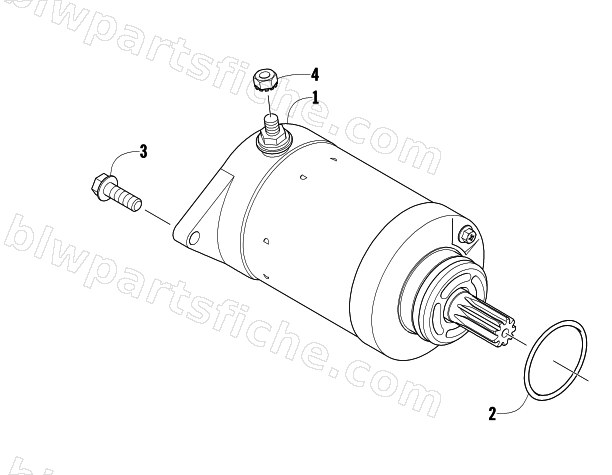

STARTER MOTOR ASSEMBLY diagram
# Part No. Description Qty Price
1 0837-009 KIT,STARTER REPLACEMENT(366) 1 $429.95
2 3304-104 O-RING 24.4*3.1 1 $1.95
3 3303-385 BOLT FLANGE SH 6*28 1 $0.81
4 3304-011 NUT WASH 6MM 1 $0.81
