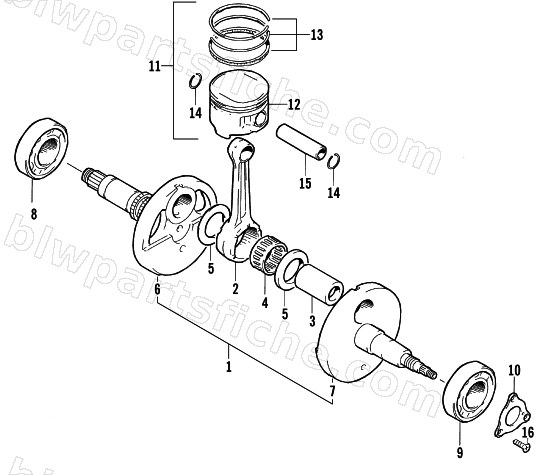

2009 Arctic Cat 500 4X4 AUTOMATIC — CRANKSHAFT ASSEMBLY
2009 500 4X4 AUTOMATIC
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3403-018 | CRANKSHAFT ASSY | 1 | $1,227.95 | |
| 2 | 3402-376 | CONNROD | 1 | $196.95 | |
| 3 | 3402-377 | PIN,CRANK | 1 | $94.95 | |
| 4 | 3402-717 | BEARING (37X47X24.8) | 1 | $144.95 | |
| 5 | 3423-351 | WASHER,M37X55X1 | 1 | $12.35 | |
| 7 | 3402-705 | CRANKSHAFT,LEFT | 1 | $454.95 | |
| 8 | 3402-058 | BEARING,BALL, M40X80X18 | 1 | $156.95 | |
| 9 | 3402-054 | BALL BEARING ,M35X80X21 | 1 | $156.95 | |
| 10 | 3402-188 | RETAINER, OIL SEAL | 1 | $17.87 | |
| 11 | 3402-788 | PISTON SET | 1 | $227.95 | |
| 12 | 3402-719 | PISTON | 1 | $169.95 | |
| 13 | 3402-720 | RING SET, PISTON | 1 | $94.95 | |
| 14 | 3423-344 | CIRCLIP,M23 | 1 | $3.71 | |
| 15 | 3402-375 | PIN, PISTON | 1 | $58.95 | |
| 16 | 3423-018 | SCREW, 6X12 | 1 | $2.61 |
