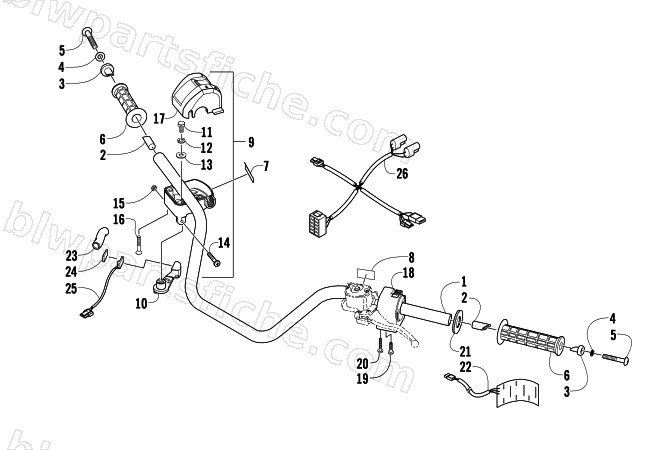

2009 Arctic Cat 550 H1 EFI 4X4 AUTOMATIC LE — HANDLEBAR ASSEMBLY
2009 550 H1 EFI 4X4 AUTOMATIC LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0505-418 | HANDLE BAR-BLACK | 1 | $30.95 | |
| 2 | 0405-218 | PLUG,HANDLEBAR | 1 | $20.63 | |
| 3 | 0405-149 | END,HANDLE BAR | 1 | $3.16 | |
| 4 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 5 | 8477-845 | SCREW,MACH-TSTRH M8X1.25X45 Z&BLK | 1 | $3.44 | |
| 6 | 0405-147 | GRIP,HANDLEBAR (EXTERNAL) | 1 | $20.63 | |
| 7 | 0411-966 | DECAL,WARNING DIFF LOCK(MINIATURE) | 1 | $1.78 | |
| 8 | 1411-865 | DECAL,WARNING-BRAKE LEVER LOCK | 1 | $3.30 | |
| 9 | 0509-045 | RHCA,2WD/4WD FOR D-L (09 FIS) | 1 | $203.95 | |
| 10 | 3409-001 | LEVER,THROTTLE | 1 | $26.95 | |
| 11 | 3007-392 | BOLT | 1 | $3.95 | |
| 12 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 13 | 3003-030 | WASHER, FLAT | 1 | $2.75 | |
| 14 | 3423-014 | SCREW,5MM | 1 | $2.06 | |
| 15 | 3423-327 | NUT,5MM | 1 | $2.33 | |
| 16 | 3423-199 | SCREW, 5X30 | 1 | $1.78 | |
| 17 | 0409-119 | SWITCH,2WD/4WD FOR D-L (09 FIS) | 1 | $133.95 | |
| 18 | 0509-014 | HANDLE CONTROL,LEFT-ASSY (W/ OVERIDE) | 1 | $144.95 | |
| 19 | 0409-027 | SCREW, SWITCH CONTROL - 5X35-6ZK | 1 | $4.95 | |
| 20 | 0409-028 | SCREW, SWITCH CONTROL - 5X45-6ZK | 1 | $4.95 | |
| 21 | 3409-019 | COVER, DUST | 1 | $2.61 | |
| 22 | 0609-800 | ELEMENT, HW- H/L RH | 1 | $85.95 | |
| 23 | 0441-498 | TUBE, SHRINK-0.75"X 2.00" | 1 | $16.49 | |
| 24 | 0617-248 | PAD, INSULATOR-THUMB WARMER | 1 | $1.37 | |
| 25 | 0409-134 | ELEMENT,TW-HI/LO INV (010 FIS) | 1 | $69.95 | |
| 26 | 0486-299 | HARNESS,HAND/THUMB WARMER | 1 | $108.95 |
