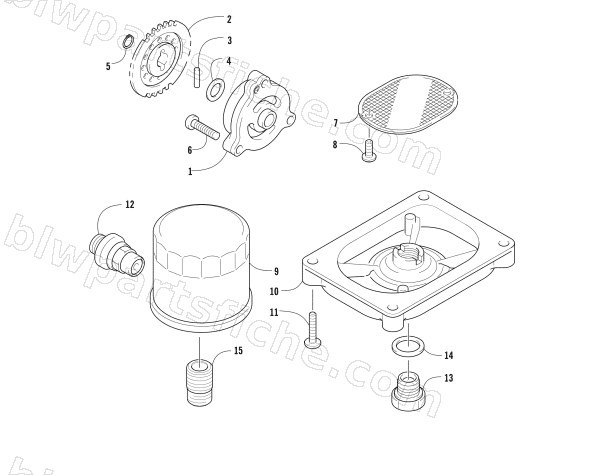

2009 Arctic Cat 550 H1 EFI 4X4 AUTOMATIC — OIL FILTER/PUMP ASSEMBLY
2009 550 H1 EFI 4X4 AUTOMATIC
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0812-023 | PUMP, OIL LOW FLOW ASSY | 1 | $100.95 | |
| 2 | 0812-083 | R/B 0812-094 | 1 | $59.95 | |
| 3 | 0829-009 | PIN (4 X 16) | 1 | $2.06 | |
| 4 | 0828-007 | SHIM, 10 x 18 x .57.8x.5 | 1 | $16.49 | |
| 5 | 0831-002 | RING, EXTERNAL RETAINING - DSH-10 | 1 | $0.40 | |
| 6 | 0826-039 | SCREW,MACH-TSPH M6X1X25 W/ THD LOCK | 1 | $1.23 | |
| 7 | 0812-057 | STRAINER,OIL | 1 | $4.40 | |
| 8 | 0826-040 | SCREW,MACH-TSPH M5 X0.8X12 W/ WASHERS | 1 | $1.78 | |
| 9 | 0812-034 | FILTER,OIL-(0812-029) | 1 | $16.49 | |
| 10 | 0812-053 | CAP,OIL SUMP | 1 | $50.95 | |
| 11 | 8468-625 | SCREW,MACH-TSPNH M6X1.0X25 CL8.8 BLK | 1 | $0.68 | |
| 12 | 0812-007 | VALVE, ASSEMBLY - OIL RELIEF | 1 | $85.95 | |
| 13 | 0812-006 | PLUG, DRAIN MAGNETIC | 1 | $19.25 | |
| 14 | 0830-017 | GASKET, METAL, COMPRESSION | 1 | $5.09 | |
| 15 | 0812-066 | UNION,OIL FILTER (KY) | 1 | $13.73 |
