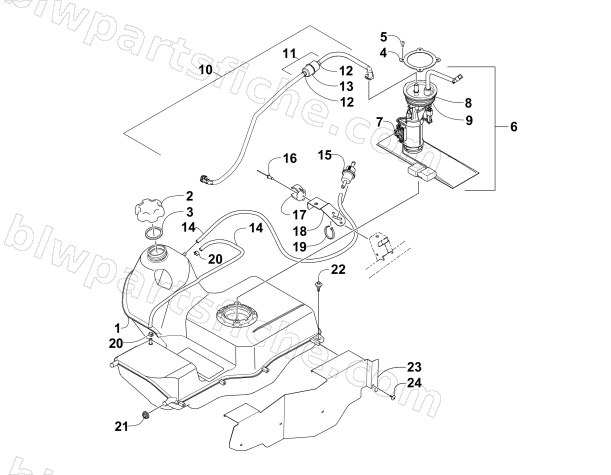

2009 Arctic Cat 550 TRV LE — GAS TANK ASSEMBLY
2009 550 TRV LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0570-206 | TANK,FUEL-ASSEMBLY(SERVICE PARTS) | 1 | $494.95 | |
| 2 | 0470-438 | CAP,FUEL TANK | 1 | $13.73 | |
| 4 | 0470-606 | MOUNT,FUEL PUMP | 1 | $23.39 | |
| 5 | 8476-612 | SCREW,MACH-TSTRH M6X1.0X12 Z&Y | 1 | $0.95 | |
| 6 | 0570-271 | PUMP,FUEL-ASSEMBLY | 1 | $799.95 | |
| 7 | 0570-252 | SENDER,FUEL LEVEL-KIT | 1 | $180.95 | |
| 10 | 0570-277 | HOSE,FUEL-ASSEMBLY | 1 | $118.95 | |
| 11 | 0570-246 | FILTER,FUEL-KIT | 1 | $51.95 | |
| 14 | 0410-070 | HOSE,FUEL-25 FT (0419-272 CTL) | 1 | $66.95 | |
| 15 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 16 | 8060-628 | RIVET,BLIND-DH AA66 BLK | 1 | $1.23 | |
| 17 | 1670-826 | BRKT,FUEL FILTER-F3 | 1 | $6.34 | |
| 18 | 0470-794 | BRACKET, FUEL FILTER | 1 | $16.49 | |
| 19 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 20 | 0423-688 | CLAMP,SNAP-10 MM | 1 | $2.33 | |
| 21 | 0423-460 | GROMMET, FUEL TANK | 1 | $4.26 | |
| 22 | 0423-732 | SCREW,FUEL TANK | 1 | $2.61 | |
| 23 | 0470-822 | SHIELD,FUEL TANK | 1 | $82.95 | |
| 24 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 |
