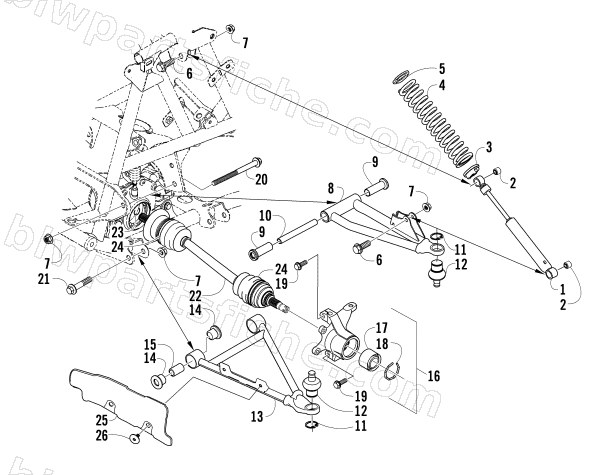

FRONT SUSPENSION ASSEMBLY
2009 700 H1 EFI 4X4 AUTOMATIC MUD PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0403-180 | SHOCK,FRONT | 1 | $126.95 | |
| 2 | 0403-182 | BUSHING-DOUBLE BONDED | 1 | $15.11 | |
| 3 | 0403-395 | CAM,ADJUSTER-SPRING | 1 | $20.63 | |
| 4 | 0403-210 | SPRING,FRONT-WHITE (200LB 13.0") | 1 | $66.95 | |
| 5 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 6 | 8409-040 | SCREW,CAP-HFH M10X1.25X40 CL10.9 Z&Y | 1 | $1.50 | |
| 7 | 0423-744 | NUT,HEX FLANGE-NSL M10X1.25 W/ 204 PATCH | 1 | $1.92 | |
| 8 | 0503-416 | A-ARM,FRONT UPPER RH-BLACK-ASSY | 1 | $260.95 | |
| 8 | 0503-417 | A-ARM,FRONT UPPER LH-BLACK-ASSY | 1 | $260.95 | |
| 9 | 0403-289 | BUSHING,UPPER A-ARM SUSPENSION | 1 | $4.13 | |
| 10 | 0403-439 | COLLAR,SUSPENSION BUSHING-UPPER A-ARM | 1 | $17.87 | |
| 11 | 0423-009 | CLIP,BALL JOINT | 1 | $1.37 | |
| 12 | 0405-483 | BALLJOINT-ASSY (DOUBLE STAKE) | 1 | $38.95 | |
| 13 | 0503-376 | A-ARM,FRONT LOWER-RH-ASSY (BLACK) | 1 | $260.95 | |
| 13 | 0503-377 | A-ARM,FRONT LOWER-LH-ASSY (BLACK) | 1 | $260.95 | |
| 14 | 0403-409 | BUSHING,A-ARM SUSPENSION | 1 | $2.47 | |
| 15 | 0403-438 | COLLAR,SUSPENSION BUSHING-A-ARM | 1 | $4.95 | |
| 16 | 0505-576 | R/B 0505-978 | 1 | $266.95 | |
| 16 | 0505-577 | KNUCKLE,STEERING-LH ASSY | 1 | $239.95 | |
| 17 | 1402-809 | BEARING,WHEEL | 1 | $33.95 | |
| 18 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 | |
| 19 | 0423-998 | SCREW,SHLDR-M10X30 CL10.9 BLK (W/ PATCH) | 1 | $2.61 | |
| 20 | 0423-334 | SCREW, CAP-HFH M10-1.25 X165 Z&Y CL10.9 | 1 | $5.65 | |
| 21 | 8409-075 | SCREW,CAP-HFH M10X1.25X75 CL10.9 Z&Y | 1 | $1.92 | |
| 22 | 1502-874 | KIT,HALFSHAFT | 1 | $224.95 | |
| 22 | 1502-873 | KIT,HALFSHAFT-FRNT-LCK-DB CPLR-LG SEAL | 1 | $277.95 | |
| 23 | 0423-844 | CLIP,RETAINING-INBOARD | 1 | $1.23 | |
| 24 | 1436-207 | KIT,CV BOOT-UNIVERSAL | 1 | $73.95 | |
| 25 | 1406-034 | GUARD, BOOT-RH (BLACK) | 1 | $37.95 | |
| 25 | 1406-035 | GUARD, BOOT-LH (BLACK) | 1 | $37.95 | |
| 26 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 |
