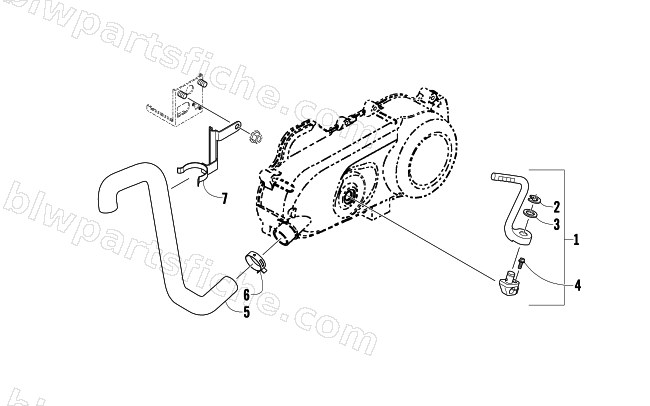

2009 Arctic Cat 90 DVX — KICK STARTER AND COOLING DUCT ASSEMBLY
2009 90 DVX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-123 | ARM ASSY KICK STARTER | 1 | $54.95 | |
| 2 | 3305-247 | E-RING 10mm | 1 | $1.78 | |
| 3 | 3304-138 | R/B 3323-163 | 1 | $1.95 | |
| 4 | 3304-551 | BOLT FLANGE 6*22 | 1 | $0.81 | |
| 5 | 3303-010 | DUCT L COVER | 1 | $23.39 | |
| 6 | 3303-074 | CLIP HOSE | 1 | $3.16 | |
| 7 | 3303-287 | BAND ASSY AIR/C TUBE | 1 | $8.21 |
