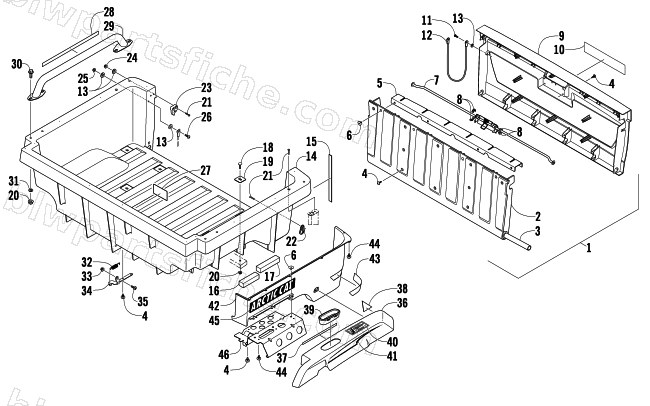

2009 Arctic Cat PROWLER 1000 XTZ 4X4 — CARGO BOX AND TAILGATE ASSEMBLY
2009 PROWLER 1000 XTZ 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2516-328 | TAILGATE ASSEMBLY-BURNT ORANGE | 1 | $582.95 | |
| 1 | 2516-329 | TAILGATE ASSEMBLY-APPLE GREEN | 1 | $582.95 | |
| 2 | 2406-365 | PANEL,TAILGATE INNER | 1 | $140.95 | |
| 3 | 1406-927 | SHAFT,PIVOT-TAILGATE | 1 | $26.95 | |
| 4 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 5 | 1506-704 | BRACE,TAILGATE-BLACK | 1 | $58.95 | |
| 6 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 7 | 2506-056 | LATCH,TAILGATE-BLACK | 1 | $112.95 | |
| 8 | 1406-706 | BEARING,HANDLE | 1 | $2.06 | |
| 9 | 2516-207 | PANEL,TAILGATE OUTER-BURNT ORANGE (PTD) | 1 | $390.95 | |
| 9 | 2516-208 | PANEL,TAILGATE OUTER-A GREEN MET (PTD) | 1 | $390.95 | |
| 10 | 2411-005 | DECAL,GRAPHIC-RR BOX "ARCTIC CAT" | 1 | $33.95 | |
| 11 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 12 | 0487-045 | CABLE,TAILGATE | 1 | $17.87 | |
| 13 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 14 | 2516-335 | R/B 8506-265 | 1 | $357.95 | |
| 15 | 0417-006 | STRIP,FOAM .125 IN | 1 | $2.06 | |
| 16 | 0417-011 | FOAM,CARGO BOX(1.625 X 2 X 6.5) | 1 | $5.78 | |
| 17 | 0417-010 | FOAM,CARGO BOX (1.75 X 2 X 8) | 1 | $6.89 | |
| 18 | 0423-623 | BOLT,CRG-M8-1.25X30-BLK | 1 | $1.50 | |
| 19 | 1506-933 | PLATE,RETAINING-BLACK (MATTE) | 1 | $12.35 | |
| 20 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 21 | 8474-630 | SCREW,MACH-TSFH M6X1.0X30 CL8.8 BLK | 1 | $1.23 | |
| 22 | 1506-539 | BRACKET,TAILGATE-BLACK | 1 | $20.63 | |
| 23 | 2506-664 | STRIKER,TAILGATE-RH-COATED | 1 | $17.87 | |
| 23 | 2506-665 | STRIKER,TAILGATE-LH-COATED | 1 | $17.87 | |
| 24 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 25 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 | |
| 26 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 27 | 1411-119 | DECAL,WARNING-CARGO (600#) | 1 | $16.49 | |
| 28 | 2411-004 | DECAL,GRAPHIC-BOX RAIL "PROWLER"(SS ORG) | 1 | $10.97 | |
| 28 | 2411-070 | DECAL,GRAPHIC-BOX RAIL "PROWLER" (AGM) | 1 | $10.97 | |
| 29 | 2516-330 | BOX,RAIL-BLACK-RH | 1 | $64.95 | |
| 29 | 2516-241 | BOX RAIL-BLACK-LH | 1 | $64.95 | |
| 30 | 8410-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE BLK | 1 | $1.09 | |
| 31 | 0423-907 | WASHER,FORMED | 1 | $13.73 | |
| 32 | 2416-086 | SPRING,BOX RELEASE | 1 | $5.51 | |
| 33 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 34 | 2516-178 | BRACKET,BOX LATCH SPRING-PAINTED | 1 | $20.63 | |
| 35 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 36 | 2506-996 | FENDER,REAR UPPER-RH-BURNT ORANGE-ASSY | 1 | $97.95 | |
| 36 | 2506-997 | FENDER,REAR UPPER-LH-BURNT ORANGE-ASSY | 1 | $97.95 | |
| 36 | 2516-188 | FENDER,RR UPPER-RH-A GREEN METALLIC-ASSY | 1 | $188.95 | |
| 36 | 2516-189 | FENDER,RR UPPER-LH-A GREEN METALLIC-ASSY | 1 | $188.95 | |
| 37 | 0417-007 | STRIP,FOAM .125 IN | 1 | $9.59 | |
| 38 | 0417-008 | PAD,FOAM .125 IN | 1 | $1.23 | |
| 39 | 2516-037 | RING,TRIM-FENDER | 1 | $5.92 | |
| 40 | 1411-120 | DECAL,WARNING-PINCH POINT | 1 | $4.95 | |
| 41 | 1411-998 | DECAL,GRAPHIC-RR FENDER BACK RH | 1 | $26.95 | |
| 41 | 1411-999 | DECAL,GRAPHIC-RR FENDER BACK LH | 1 | $26.95 | |
| 41 | 2411-066 | DECAL,GRAPHIC RR FENDER-BACK-RH (AGM) | 1 | $26.95 | |
| 41 | 2411-067 | DECAL,GRAPHIC RR FENDER-BACK-LH (AGM) | 1 | $26.95 | |
| 42 | 2516-202 | PANEL,BOX-RH-BURNT ORANGE (PAINTED) | 1 | $212.95 | |
| 42 | 2516-203 | PANEL,BOX-LH-BURNT ORANGE (PAINTED) | 1 | $205.95 | |
| 42 | 2516-204 | PANEL,BOX-RH-APPLE GREEN METALLIC (PTD) | 1 | $212.95 | |
| 42 | 2516-205 | PANEL,BOX-LH-APPLE GREEN METALLIC (PTD) | 1 | $212.95 | |
| 43 | 1411-128 | REFLECTOR,RH-REAR | 1 | $13.73 | |
| 43 | 1411-129 | REFLECTOR,LH-REAR | 1 | $13.73 | |
| 44 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 45 | 1411-996 | DECAL,GRAPHIC-BOX SIDE RH | 1 | $47.95 | |
| 45 | 1411-997 | DECAL,GRAPHIC-BOX SIDE LH | 1 | $47.95 | |
| 45 | 2411-064 | DECAL,GRAPHIC-BOX SIDE-RH (AGM) | 1 | $47.95 | |
| 45 | 2411-065 | DECAL,GRAPHIC-BOX SIDE-LH (AGM) | 1 | $47.95 | |
| 46 | 1506-776 | BRACKET,FENDER SUPPORT-RH BLACK | 1 | $114.95 | |
| 46 | 2506-927 | BRACKET,FENDER SUPPORT-LH-BLACK | 1 | $108.95 |
