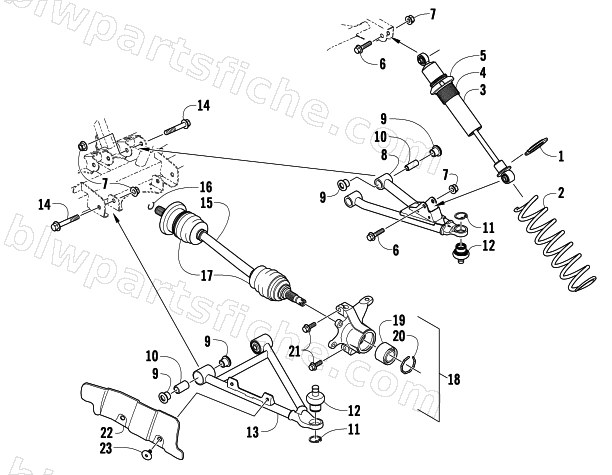

2009 Arctic Cat PROWLER 1000 XTZ 4X4 — FRONT SUSPENSION ASSEMBLY
2009 PROWLER 1000 XTZ 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-920 | RETAINER,SPRING | 1 | $42.95 | |
| 2 | 0503-398 | SPRING,COIL-FRONT-BLACK | 1 | $85.95 | |
| 3 | 0403-215 | SHOCK ABSORBER-FRONT | 1 | $461.95 | |
| 4 | 0423-917 | TUBE,RETAINER-THREADED | 1 | $71.95 | |
| 5 | 0423-919 | NUT,RETAINER | 1 | $6.34 | |
| 6 | 8409-055 | SCREW,CAP-HFH M10X1.25X55 CL10.9 Z&Y | 1 | $4.13 | |
| 7 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 8 | 0503-432 | A-ARM,FRONT UPPER RH-BLACK-ASSY | 1 | $187.95 | |
| 8 | 0503-397 | A-ARM,FRONT UPPER ASSY-LH (BLACK) | 1 | $187.95 | |
| 9 | 0403-409 | BUSHING,A-ARM SUSPENSION | 1 | $2.47 | |
| 10 | 0403-438 | COLLAR,SUSPENSION BUSHING-A-ARM | 1 | $4.95 | |
| 11 | 0423-009 | CLIP,BALL JOINT | 1 | $1.37 | |
| 12 | 0405-483 | BALLJOINT-ASSY (DOUBLE STAKE) | 1 | $38.95 | |
| 13 | 0503-376 | A-ARM,FRONT LOWER-RH-ASSY (BLACK) | 1 | $260.95 | |
| 13 | 0503-377 | A-ARM,FRONT LOWER-LH-ASSY (BLACK) | 1 | $260.95 | |
| 14 | 8409-075 | SCREW,CAP-HFH M10X1.25X75 CL10.9 Z&Y | 1 | $1.92 | |
| 15 | 1502-940 | KIT,HALFSHAFT (1502-803) | 1 | $454.95 | |
| 15 | 1502-939 | KIT,HALFSHAFT (1502-802) | 1 | $454.95 | |
| 16 | 0423-844 | CLIP,RETAINING-INBOARD | 1 | $1.23 | |
| 17 | 1436-207 | KIT,CV BOOT-UNIVERSAL | 1 | $73.95 | |
| 18 | 0505-580 | KNUCKLE,STEERING-RH ASSY | 1 | $239.95 | |
| 18 | 0505-581 | KNUCKLE,STEERING-LH ASSY | 1 | $239.95 | |
| 19 | 1402-809 | BEARING,WHEEL | 1 | $33.95 | |
| 20 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 | |
| 21 | 8409-030 | SCREW,CAP-HFH M10X1.25X30 CL10.9 Z&Y | 1 | $2.47 | |
| 22 | 1406-034 | GUARD, BOOT-RH (BLACK) | 1 | $37.95 | |
| 22 | 1406-035 | GUARD, BOOT-LH (BLACK) | 1 | $37.95 | |
| 23 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 |
