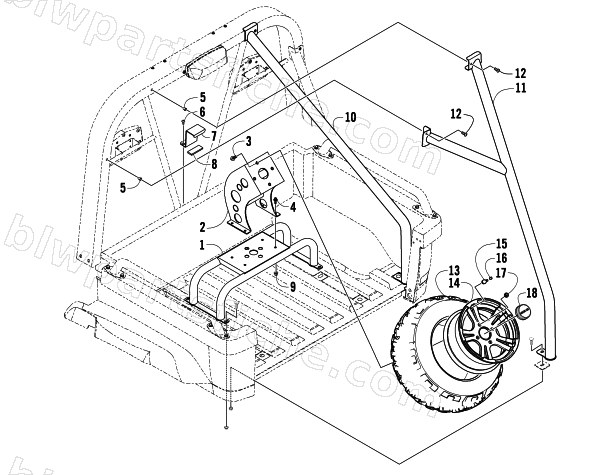

2009 Arctic Cat PROWLER 1000 XTZ 4X4 — ROLL SUPPORT AND SPARE TIRE ASSEMBLY
2009 PROWLER 1000 XTZ 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0541-627 | MOUNT, TOWER - PAINTED | 1 | $151.95 | |
| 2 | 0541-625 | TOWER, MAIN - PAINTED | 1 | $197.95 | |
| 3 | 8409-030 | SCREW,CAP-HFH M10X1.25X30 CL10.9 Z&Y | 1 | $2.47 | |
| 4 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 5 | 1441-442 | NUTSERT,HEX-M6-1.0 | 1 | $1.37 | |
| 6 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 7 | 0541-649 | BRACKET,CARGO BOX-PAINTED | 1 | $23.39 | |
| 8 | 0406-288 | PAD,BATTERY-TOP FR | 1 | $6.34 | |
| 9 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 10 | 0541-634 | BOX BAR-RH-PAINTED | 1 | $213.95 | |
| 11 | 0541-635 | BOX BAR-LH-PAINTED | 1 | $213.95 | |
| 12 | 8471-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z&B | 1 | $0.68 | |
| 13 | 1402-790 | TIRE,MAXXIS 4-SPEED NHS(26X9R14) | 1 | $234.95 | |
| 14 | 1402-732 | WHEEL,FRONT - ALUMINUM (14X6.5) | 1 | $159.95 | |
| 15 | 0402-064 | VALVE STEM(412-50)(SCHRADER) | 1 | $3.44 | |
| 17 | 0423-618 | NUT,LUG MOUNTING-CHROME | 1 | $3.57 | |
| 18 | 1402-736 | CAP, CENTER | 1 | $24.77 |
