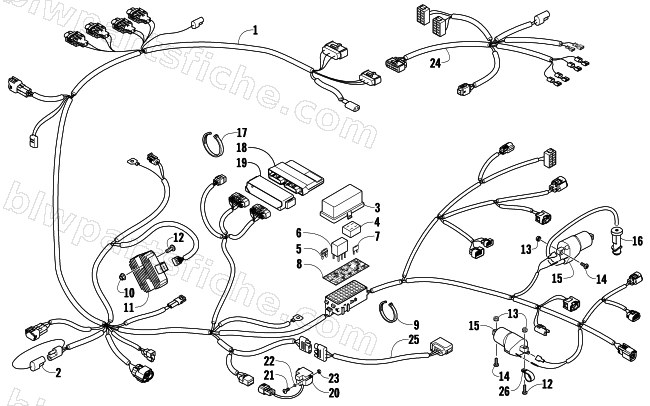

2009 Arctic Cat PROWLER 1000 XTZ 4X4 — WIRING HARNESS ASSEMBLY
2009 PROWLER 1000 XTZ 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0486-273 | HARNESS/DIA,MAIN(09 PROWLER H2) | 1 | $818.95 | |
| 2 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 3 | 0530-008 | COVER, PDM - ASSY | 1 | $34.95 | |
| 4 | 0430-037 | HOLDER,SPARE FUSE-FOAM | 1 | $3.02 | |
| 5 | 0430-034 | DIODE, MINI-1A | 1 | $16.49 | |
| 6 | 0430-045 | RELAY,SPST-4P 12V/20A | 1 | $30.95 | |
| 7 | 0430-032 | FUSE, MINI-10A | 1 | $3.02 | |
| 7 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 7 | 0430-030 | FUSE, MINI-30A | 1 | $2.88 | |
| 8 | 1411-526 | DECAL,PDM (08 H2) | 1 | $100.95 | |
| 9 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 10 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 11 | 0824-037 | REGULATOR,VOLTAGE (W/TACH SIGNAL) | 1 | $113.95 | |
| 12 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 13 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 14 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 15 | 0824-043 | COIL,IGNITION-EFI INDUCTIVE | 1 | $252.95 | |
| 16 | 0824-049 | CAP,SPARK PLUG () | 1 | $15.11 | |
| 17 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 18 | 0530-025 | ECU,EFI-PROGRAMMED ('09 BT PRLR ) | 1 | $687.95 | |
| 19 | 0430-059 | CUSHION,CASE-ECU | 1 | $16.49 | |
| 20 | 0409-064 | SENSOR,INCLINATION (AD) | 1 | $90.95 | |
| 21 | 8468-425 | SCREW,MACH-TSPNH M4X.7X25 CL8.8 BLK | 1 | $0.54 | |
| 22 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 23 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 24 | 0486-290 | HARNESS,CONSOLE (09 550/700-H1 EFI XTX) | 1 | $126.95 | |
| 25 | 0486-176 | HARNESS,ADAPTER-TAILLIGHT 06 PROWLER | 1 | $37.95 | |
| 26 | 0123-269 | CLAMP,CABLE,11/16 INSUL | 1 | $2.75 |
