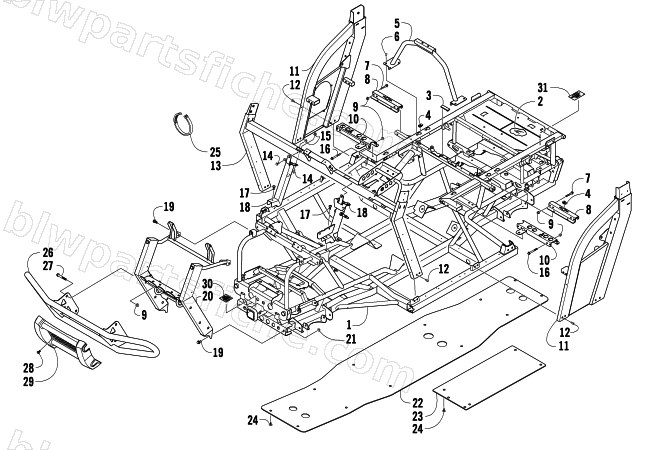

2009 Arctic Cat PROWLER 650 XT AUTOMATIC 4X4 — FRAME AND RELATED PARTS
2009 PROWLER 650 XT AUTOMATIC 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2516-497 | FRAME-FAB (PROWLER ST/MT) | 1 | $2,823.95 | |
| 2 | 0412-461 | SHIELD,HEAT-CHASSIS | 1 | $15.11 | |
| 3 | 0406-879 | BUMPER, SEAT | 1 | $3.71 | |
| 4 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 5 | 2506-638 | CANOPY SUPPORT-BLACK | 1 | $108.95 | |
| 6 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 7 | 8408-850 | SCREW,CAP-HFH M8X1.25X50 CL8.8 Z&Y | 1 | $1.09 | |
| 8 | 1506-842 | BRACKET,SEAT-SUPPORT-REAR-PAINTED BLK | 1 | $23.39 | |
| 9 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 10 | 1506-844 | BRACKET,SEAT-SUPPORT-FRONT-RH-PTD BLK | 1 | $62.95 | |
| 10 | 1506-845 | BRACKET,SEAT-SUPPORT-FRONT-LH-PTD BLK | 1 | $64.95 | |
| 11 | 2506-634 | SUPPORT,OVERHEAD-RH-BLACK | 1 | $324.95 | |
| 11 | 2506-635 | SUPPORT,OVERHEAD-LH-BLACK | 1 | $324.95 | |
| 12 | 0423-642 | SCREW,MACH-TSTRH M8X1.25 X 20 BLK CL8.8 | 1 | $1.23 | |
| 13 | 0505-513 | STEERING,SUPPORT-PAINTED | 1 | $468.95 | |
| 14 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 15 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 16 | 8408-870 | SCREW,CAP-HFH M8X1.25X70 CL8.8 Z&Y | 1 | $2.61 | |
| 17 | 8476-820 | SCREW,MACH-TSTRH M8X1.25X20 Z&Y | 1 | $0.95 | |
| 18 | 1506-797 | BRACKET,STEERING SUPPORT-PAINTED | 1 | $114.95 | |
| 18 | 0502-853 | BRACKET,STEERING SUPPORT-PAINTED | 1 | $140.95 | |
| 19 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 20 | 2516-558 | BUMPER,XT/X-PTD BLACK | 1 | $324.95 | |
| 21 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 22 | 1406-720 | PANEL,BELLY | 1 | $163.95 | |
| 23 | 1406-721 | PANEL,BELLY-SIDE | 1 | $90.95 | |
| 24 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 | |
| 25 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 26 | 2516-158 | BUMPER,PUSH-PTD BLACK | 1 | $314.95 | |
| 27 | 8408-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 Z&Y | 1 | $1.37 | |
| 28 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 29 | 2406-713 | FASCIA,BUMPER-FRONT | 1 | $51.95 | |
| 30 | 1411-122 | DECAL,WARNING-TOWING FR | 1 | $5.65 | |
| 31 | 1411-123 | DECAL,WARNING-TOWING RR | 1 | $5.65 |
