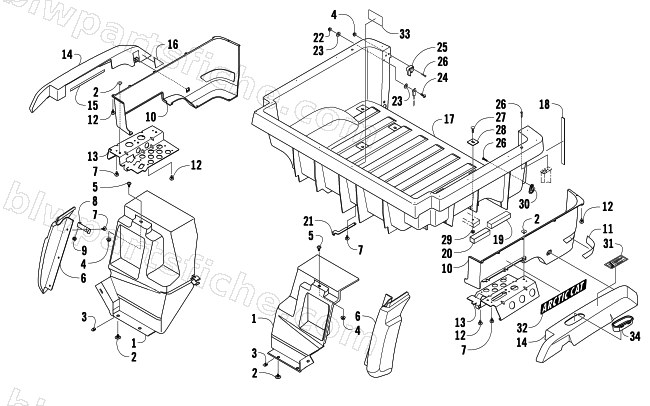

2009 Arctic Cat PROWLER 650 XT AUTOMATIC 4X4 — REAR BODY PANEL AND CARGO BOX ASSEMBLY
2009 PROWLER 650 XT AUTOMATIC 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2406-616 | PANEL,SPLASH-REAR-RH | 1 | $100.95 | |
| 1 | 2406-617 | PANEL,SPLASH-REAR-LH | 1 | $100.95 | |
| 2 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 3 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 4 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 5 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 6 | 2406-870 | FENDER,REAR LOWER-RH-MARSH GREEN | 1 | $48.95 | |
| 6 | 2406-871 | FENDER,REAR LOWER-LH-MARSH GREEN | 1 | $48.95 | |
| 6 | 2406-868 | FENDER,REAR LOWER-RH-RED | 1 | $48.95 | |
| 6 | 2406-869 | FENDER,REAR LOWER-LH-RED | 1 | $48.95 | |
| 6 | 2406-872 | FENDER,REAR LOWER-RH-LIME GREEN | 1 | $48.95 | |
| 6 | 2406-873 | FENDER,REAR LOWER-LH-LIME GREEN | 1 | $48.95 | |
| 7 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 8 | 2516-095 | BRACKET,LOWER FENDER SUPPORT-BLACK | 1 | $10.95 | |
| 9 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 | |
| 10 | 1406-762 | PANEL,BOX-RIGHT-BLACK | 1 | $58.95 | |
| 10 | 1406-761 | PANEL,BOX-LEFT-BLACK | 1 | $58.95 | |
| 11 | 1411-128 | REFLECTOR,RH-REAR | 1 | $13.73 | |
| 11 | 1411-129 | REFLECTOR,LH-REAR | 1 | $13.73 | |
| 12 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 13 | 1506-776 | BRACKET,FENDER SUPPORT-RH BLACK | 1 | $114.95 | |
| 13 | 2506-927 | BRACKET,FENDER SUPPORT-LH-BLACK | 1 | $108.95 | |
| 14 | 2506-992 | FENDER,REAR UPPER-RH-MARSH GREEN-ASSY | 1 | $62.95 | |
| 14 | 2506-993 | FENDER,REAR UPPER-LH-MARSH GREEN-ASSY | 1 | $64.95 | |
| 14 | 2506-990 | FENDER,REAR UPPER-RH-RED-ASSEMBLY | 1 | $62.95 | |
| 14 | 2506-991 | FENDER,REAR UPPER-LH-RED-ASSEMBLY | 1 | $64.95 | |
| 14 | 2506-994 | FENDER,REAR UPPER-RH-LIME GREEN-ASSY | 1 | $72.95 | |
| 14 | 2506-995 | FENDER,REAR UPPER-LH-LIME GREEN-ASSY | 1 | $64.95 | |
| 15 | 0417-007 | STRIP,FOAM .125 IN | 1 | $9.59 | |
| 16 | 0417-008 | PAD,FOAM .125 IN | 1 | $1.23 | |
| 17 | 2406-916 | BOX,REAR CARGO | 1 | $806.95 | |
| 18 | 0417-006 | STRIP,FOAM .125 IN | 1 | $2.06 | |
| 19 | 0417-010 | FOAM,CARGO BOX (1.75 X 2 X 8) | 1 | $6.89 | |
| 20 | 0417-011 | FOAM,CARGO BOX(1.625 X 2 X 6.5) | 1 | $5.78 | |
| 21 | 2516-178 | BRACKET,BOX LATCH SPRING-PAINTED | 1 | $20.63 | |
| 22 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 | |
| 23 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 24 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 25 | 2506-664 | STRIKER,TAILGATE-RH-COATED | 1 | $17.87 | |
| 25 | 2506-665 | STRIKER,TAILGATE-LH-COATED | 1 | $17.87 | |
| 26 | 8474-630 | SCREW,MACH-TSFH M6X1.0X30 CL8.8 BLK | 1 | $1.23 | |
| 27 | 0423-623 | BOLT,CRG-M8-1.25X30-BLK | 1 | $1.50 | |
| 28 | 1506-933 | PLATE,RETAINING-BLACK (MATTE) | 1 | $12.35 | |
| 29 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 30 | 1506-539 | BRACKET,TAILGATE-BLACK | 1 | $20.63 | |
| 31 | 1411-120 | DECAL,WARNING-PINCH POINT | 1 | $4.95 | |
| 32 | 1411-539 | DECAL,BOX-"ARCTIC CAT"(PROWLER) | 1 | $33.95 | |
| 33 | 1411-119 | DECAL,WARNING-CARGO (600#) | 1 | $16.49 | |
| 34 | 2516-037 | RING,TRIM-FENDER | 1 | $5.92 |
