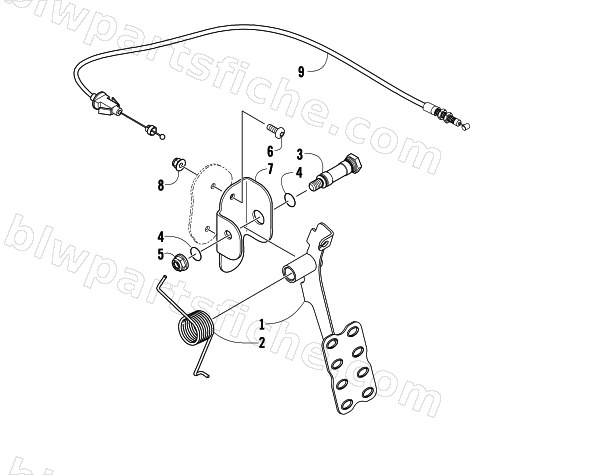

ACCELERATOR ASSEMBLY
2009 PROWLER 700 XTX 4X4 LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1502-590 | PEDAL,ACCELERATOR-PTD | 1 | $54.95 | |
| 2 | 0470-851 | SPRING,TORSION (26.3MM ID X.125" WIRE) | 1 | $26.95 | |
| 3 | 0402-872 | AXLE-FOOTBRAKE | 1 | $37.95 | |
| 4 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 5 | 8422-002 | NUT,HEX-THK NYL M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 6 | 8471-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z&B | 1 | $0.68 | |
| 7 | 0502-991 | BRACKET,ACCELERATOR-PAINTED | 1 | $20.63 | |
| 8 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 9 | 0487-066 | R/B 0487-101 | 1 | $87.95 |
