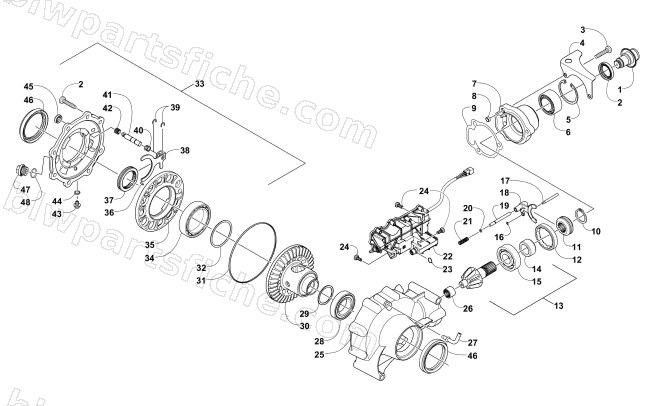

2009 Arctic Cat PROWLER 700 XTX 4X4 LE — FRONT DRIVE GEARCASE ASSEMBLY
2009 PROWLER 700 XTX 4X4 LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1502-399 | GEARCASE,FRONT(3.6-PLR ELEC LOCK) | 1 | $2,228.95 | |
| 1 | 1502-085 | SHAFT,INPUT-ASSEMBLY | 1 | $90.95 | |
| 2 | 1402-011 | SEAL | 1 | $5.51 | |
| 3 | 0423-118 | SCREW,SELF TAP-TSPNH M8X1.25X40 | 1 | $1.78 | |
| 4 | 1502-237 | BRACKET,ACTUATOR-WELD'T | 1 | $45.95 | |
| 5 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 | |
| 6 | 1402-043 | BEARING, BALL - DOUBLE ROW | 1 | $69.95 | |
| 7 | 0502-528 | HOUSING,PINION-MACH | 1 | $180.95 | |
| 8 | 0402-411 | PIN,DOWEL | 1 | $6.89 | |
| 9 | 0402-947 | GASKET, FLANGE | 1 | $3.16 | |
| 10 | 0423-417 | RING,RETAINING-EXT 30 | 1 | $8.21 | |
| 11 | 0402-413 | COUPLER,DRIVE | 1 | $66.95 | |
| 12 | 0402-357 | COLLAR,LOCKING (M64-1.5 RH) | 1 | $50.95 | |
| 13 | 0502-783 | PINION-ASSY (10TOOTH) | 1 | $196.95 | |
| 14 | 0402-336 | COLLAR, RETAINING | 1 | $50.95 | |
| 15 | 0402-327 | BEARING,BALL (6305) | 1 | $26.95 | |
| 16 | 0423-402 | RING,RETAINING-4MM EXT. | 1 | $3.16 | |
| 17 | 0402-997 | PUSHROD,SELECTOR | 1 | $66.95 | |
| 18 | 0402-998 | FORK,SELECTOR | 1 | $82.95 | |
| 19 | 0402-417 | SHAFT,SHUTTLE | 1 | $20.63 | |
| 20 | 0423-147 | O-RING,3X 2MM | 1 | $1.50 | |
| 21 | 0402-999 | SPRING,RETURN-4WD | 1 | $1.78 | |
| 22 | 2502-194 | ACTUATOR,ELEC LOCK | 1 | $454.95 | |
| 23 | 1402-981 | O-RING,ACTUATOR-FRONT GEARCASE | 1 | $0.68 | |
| 24 | 0423-396 | SCREW,SELF TAP-TSPH M6-1.0X15 | 1 | $1.09 | |
| 25 | 0502-548 | HOUSING, GEARCASE - MACH | 1 | $169.95 | |
| 26 | 0402-328 | BEARING,NEEDLE (16NQ2316) | 1 | $17.87 | |
| 27 | 1402-442 | BARB, 90 DEGREE | 1 | $20.63 | |
| 28 | 0402-393 | BEARING,BALL-SR(6008 Z C-O) | 1 | $17.87 | |
| 29 | 0402-405 | SHIM,41X49X1.3 | 1 | $10.97 | |
| 29 | 0402-406 | SHIM,41X49X1.4 | 1 | $10.97 | |
| 29 | 0402-407 | SHIM,41X49X1.5 | 1 | $10.97 | |
| 29 | 0402-408 | SHIM,41X49X1.6 | 1 | $12.35 | |
| 29 | 0402-409 | SHIM,41X49X1.7 | 1 | $10.97 | |
| 30 | 1502-555 | GEAR (36T 3.6 LOCK LSD)-WELDT | 1 | $679.95 | |
| 31 | 0423-149 | O-RING,150X 2MM | 1 | $17.87 | |
| 32 | 1402-074 | SHIM, 1.3 | 1 | $30.95 | |
| 32 | 1402-075 | SHIM, 1.4 | 1 | $30.95 | |
| 32 | 1402-076 | SHIM, 1.5 | 1 | $30.95 | |
| 32 | 1402-077 | SHIM, 1.6 | 1 | $30.95 | |
| 32 | 1402-078 | SHIM, 1.7 | 1 | $30.95 | |
| 33 | 1502-238 | COVER,E-LOCKER-ASSEMBLY | 1 | $582.95 | |
| 34 | 1402-053 | BEARING, BALL (6912 C3) | 1 | $118.95 | |
| 35 | 0502-413 | FLANGE,BEARING-MACH | 1 | $102.95 | |
| 36 | 1402-079 | PIN, PARALLEL | 1 | $1.78 | |
| 37 | 1402-042 | COLLAR, SLIDING - LOCK | 1 | $100.95 | |
| 38 | 1402-054 | FORK | 1 | $69.95 | |
| 39 | 1402-058 | RING, RETAINING | 1 | $9.59 | |
| 40 | 1402-057 | SPRING | 1 | $20.63 | |
| 41 | 1402-656 | SHAFT,LOCK | 1 | $37.95 | |
| 42 | 1402-063 | SPRING | 1 | $3.02 | |
| 43 | 1402-210 | PLUG,DRAIN-MAGNETIC | 1 | $20.63 | |
| 45 | 1402-056 | SEAL | 1 | $20.63 | |
| 46 | 2402-150 | SEAL,GEARCASE-HR | 1 | $23.39 | |
| 47 | 0402-333 | PLUG, FILL | 1 | $13.73 | |
| 48 | 0423-154 | O-RING, GEARCASE,20 X 2.5MM | 1 | $3.16 |
