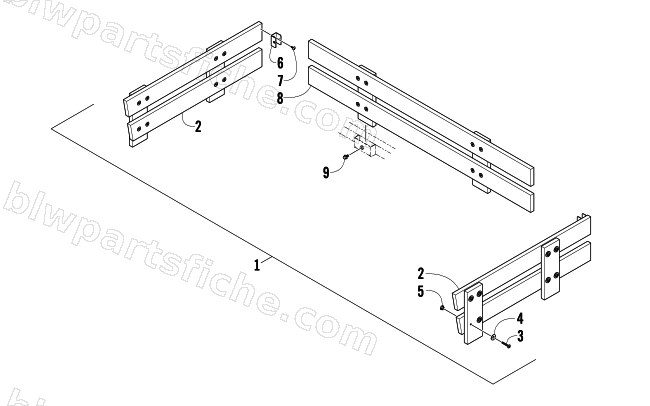

2009 Arctic Cat PROWLER 700 XTX 4X4 LE — GUARD-RAIL ASSEMBLY
2009 PROWLER 700 XTX 4X4 LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1436-315 | KIT,STAKE SIDE-WOOD | 1 | $161.95 | |
| 3 | 8468-640 | SCREW,MACH-TSPNH M6X1.0X40 CL8.8 BLK | 1 | $0.68 | |
| 4 | 8450-133 | WASHER,FLAT-M8-9.12 X 25.40 X 2.30Z&Y | 1 | $0.28 | |
| 5 | 0423-438 | NUT,T W/TEETH - M6 | 1 | $12.35 | |
| 7 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 9 | 8408-825 | SCREW,CAP-HFH M8X1.25X25 CL8.8 Z&Y | 1 | $1.23 |
