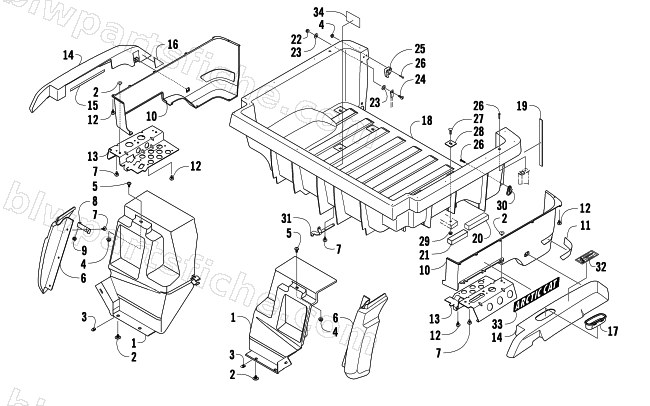

2009 Arctic Cat PROWLER 700 XTX 4X4 LE — REAR BODY PANEL AND CARGO BOX ASSEMBLY
2009 PROWLER 700 XTX 4X4 LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2406-616 | PANEL,SPLASH-REAR-RH | 1 | $100.95 | |
| 1 | 2406-617 | PANEL,SPLASH-REAR-LH | 1 | $100.95 | |
| 2 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 3 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 4 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 5 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 6 | 2516-012 | FENDER,REAR LOWER-RH-G METAL BLU-PAINTED | 1 | $129.95 | |
| 6 | 2516-013 | FENDER,REAR LOWER-LH-G METAL BLU-PAINTED | 1 | $129.95 | |
| 7 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 8 | 2516-095 | BRACKET,LOWER FENDER SUPPORT-BLACK | 1 | $10.95 | |
| 9 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 | |
| 10 | 1406-762 | PANEL,BOX-RIGHT-BLACK | 1 | $58.95 | |
| 10 | 1406-761 | PANEL,BOX-LEFT-BLACK | 1 | $58.95 | |
| 11 | 1411-128 | REFLECTOR,RH-REAR | 1 | $13.73 | |
| 11 | 1411-129 | REFLECTOR,LH-REAR | 1 | $13.73 | |
| 12 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 13 | 1506-776 | BRACKET,FENDER SUPPORT-RH BLACK | 1 | $114.95 | |
| 13 | 2506-927 | BRACKET,FENDER SUPPORT-LH-BLACK | 1 | $108.95 | |
| 14 | 2516-004 | FENDER,REAR UPPER-RH-GUN METAL BLUE-ASSY | 1 | $194.95 | |
| 14 | 2516-005 | FENDER,REAR UPPER-LH-GUN METAL BLUE-ASSY | 1 | $186.95 | |
| 15 | 0417-007 | STRIP,FOAM .125 IN | 1 | $9.59 | |
| 16 | 0417-008 | PAD,FOAM .125 IN | 1 | $1.23 | |
| 17 | 2516-037 | RING,TRIM-FENDER | 1 | $5.92 | |
| 18 | 2406-916 | BOX,REAR CARGO | 1 | $806.95 | |
| 19 | 0417-006 | STRIP,FOAM .125 IN | 1 | $2.06 | |
| 20 | 0417-010 | FOAM,CARGO BOX (1.75 X 2 X 8) | 1 | $6.89 | |
| 21 | 0417-011 | FOAM,CARGO BOX(1.625 X 2 X 6.5) | 1 | $5.78 | |
| 22 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 | |
| 23 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 24 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 25 | 2506-664 | STRIKER,TAILGATE-RH-COATED | 1 | $17.87 | |
| 25 | 2506-665 | STRIKER,TAILGATE-LH-COATED | 1 | $17.87 | |
| 26 | 8474-630 | SCREW,MACH-TSFH M6X1.0X30 CL8.8 BLK | 1 | $1.23 | |
| 27 | 0423-623 | BOLT,CRG-M8-1.25X30-BLK | 1 | $1.50 | |
| 28 | 1506-933 | PLATE,RETAINING-BLACK (MATTE) | 1 | $12.35 | |
| 29 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 30 | 1506-539 | BRACKET,TAILGATE-BLACK | 1 | $20.63 | |
| 31 | 2516-178 | BRACKET,BOX LATCH SPRING-PAINTED | 1 | $20.63 | |
| 32 | 1411-120 | DECAL,WARNING-PINCH POINT | 1 | $4.95 | |
| 33 | 1411-539 | DECAL,BOX-"ARCTIC CAT"(PROWLER) | 1 | $33.95 | |
| 34 | 1411-119 | DECAL,WARNING-CARGO (600#) | 1 | $16.49 |
