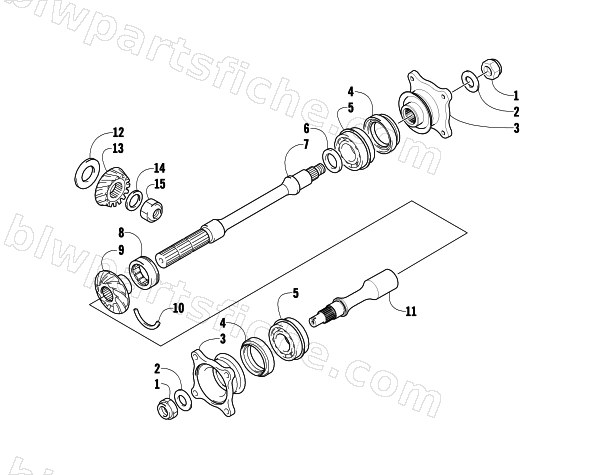

2009 Arctic Cat PROWLER 700 XTX 4X4 LE — SECONDARY DRIVE ASSEMBLY (ENGINE SERIAL NO. UP TO 0700A70010049)
2009 PROWLER 700 XTX 4X4 LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0827-013 | NUT,HEX SHOULDER M16X1.5 | 1 | $3.02 | |
| 2 | 0828-020 | WASHER, STEEL, 16.3 x 30 x 3 | 1 | $3.30 | |
| 3 | 0819-005 | FLANGE, OUTPUT JOINT - REAR, ASSEMBLY | 1 | $69.95 | |
| 4 | 0830-043 | SEAL,OIL-DRIVEN SHAFT | 1 | $6.89 | |
| 5 | 0832-017 | R/B 0832-107 | 1 | $125.95 | |
| 6 | 0828-021 | SHIM, 25 x 34 x .25 | 1 | $2.47 | |
| 6 | 0828-022 | SHIM, 25 x 34 x .30 | 1 | $8.21 | |
| 6 | 0828-023 | SHIM, 25 X 34 X 0.35 MM | 1 | $17.87 | |
| 6 | 0828-024 | SHIM,. 25 x 34 x .90 | 1 | $17.87 | |
| 6 | 0828-025 | SHIM, 25 x 34 x .95 | 1 | $17.87 | |
| 6 | 0828-026 | SHIM, 25 x 34 x 1.00 | 1 | $17.87 | |
| 6 | 0828-027 | SHIM, 25 x 34 x 1.05 | 1 | $17.87 | |
| 6 | 0828-028 | SHIM, 25 x 34 x 1.10 | 1 | $16.49 | |
| 6 | 0828-029 | SHIM, 25 x 34 x 1.15 | 1 | $17.87 | |
| 7 | 0819-089 | SHAFT,SECONDARY DRIVEN-FRONT | 1 | $217.95 | |
| 8 | 0832-016 | BEARING, DRIVEN GEAR | 1 | $50.95 | |
| 9 | 0819-002 | GEAR,(USE 0822-146-H1, 0822-147-H2) | 1 | $180.95 | |
| 10 | 0819-011 | RING, DRIVEN BEARING | 1 | $17.87 | |
| 11 | 0819-053 | SHAFT, SECONDARY DRIVEN - REAR | 1 | $82.95 | |
| 12 | 0828-019 | WASHER,THRUST, SECONDARY TRANSMISSION | 1 | $8.21 | |
| 13 | 0819-001 | GEAR, (USE 0822-146-H1, 0822-147-H2) | 1 | $130.95 | |
| 14 | 0828-030 | SHIM, 24 x 48 x .25 | 1 | $4.54 | |
| 14 | 0828-031 | SHIM, 24 x 48 x .30 | 1 | $4.54 | |
| 14 | 0828-032 | SHIM, 24 x 48 x .35 | 1 | $17.87 | |
| 14 | 0828-033 | SHIM, 24 x 48 x .90 | 1 | $5.92 | |
| 14 | 0828-018 | SHIM, 24 x 48 x .95 | 1 | $4.54 | |
| 14 | 0828-062 | SHIM, 24 x 48 x 1.00 | 1 | $17.87 | |
| 14 | 0828-063 | SHIM, 24 x 48 x 1.05 | 1 | $17.87 | |
| 14 | 0828-064 | SHIM, 24 x 48 x 1.10 | 1 | $17.87 | |
| 14 | 0828-065 | SHIM, 24 x 48 x 1.15 | 1 | $19.25 | |
| 15 | 0827-012 | NUT,HEX COLLARED (M20 X1.5 ) | 1 | $20.63 |
