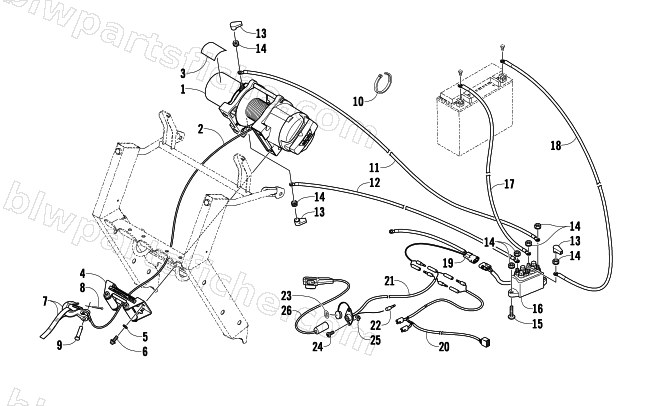

2009 Arctic Cat PROWLER 700 XTX 4X4 LE — WINCH ASSEMBLY
2009 PROWLER 700 XTX 4X4 LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1441-704 | WINCH,ARCTIC/WARN-3.0 (COMPOSITE END) | 1 | $831.95 | |
| 2 | 0441-061 | CABLE, WIRE ROPE - 15236 | 1 | $113.95 | |
| 3 | 1411-826 | DECAL,WINCH-ARCTIC CAT/WARN(3.0 RT/XT) | 1 | $1.95 | |
| 4 | 0441-403 | FAIRLEAD,ROLLER-1600 (B) | 1 | $35.95 | |
| 5 | 8051-247 | WASHER,SPR LOCK-5/16 .314X.593X.097 Z&Y | 1 | $0.40 | |
| 6 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 7 | 0541-760 | HOOK,WINCH W/A.C. STRAP AND WARNING TAG | 1 | $30.95 | |
| 8 | 1441-129 | COTTER PIN | 1 | $2.61 | |
| 9 | 1441-130 | PIN,CLEVIS | 1 | $3.16 | |
| 10 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 11 | 1441-347 | CABLE,SOLENOID-WINCH (106" YEL #6) | 1 | $53.95 | |
| 12 | 1441-348 | CABLE,SOLENOID-WINCH (106" BLU #6) | 1 | $53.95 | |
| 13 | 0441-060 | BOOT, TERMINAL | 1 | $2.61 | |
| 14 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 15 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 16 | 0409-066 | R/B 0409-246 | 1 | $139.95 | |
| 17 | 0441-416 | CABLE,BATTERY-SOLENOID (36" BLK #6) | 1 | $19.25 | |
| 18 | 0445-089 | CABLE,BATTERY-SOLENOID (36" RED #6) | 1 | $37.95 | |
| 19 | 0486-276 | HARNESS,WINCH SOLENOID JUMPER | 1 | $33.95 | |
| 20 | 0486-315 | R/B 0486-543 | 1 | $20.95 | |
| 21 | 1441-440 | SOCKET,REMOTE CONTROL-WINCH | 1 | $85.95 | |
| 22 | 1441-428 | CONNECTOR,BULLET | 1 | $1.09 | |
| 23 | 2411-050 | DECAL,REMOTE WINCH SWITCH SOCKET | 1 | $12.35 | |
| 24 | 8471-520 | SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z&B | 1 | $0.95 | |
| 25 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 26 | 1441-439 | SWITCH,REMOTE CONTROL-WINCH | 1 | $112.95 |
