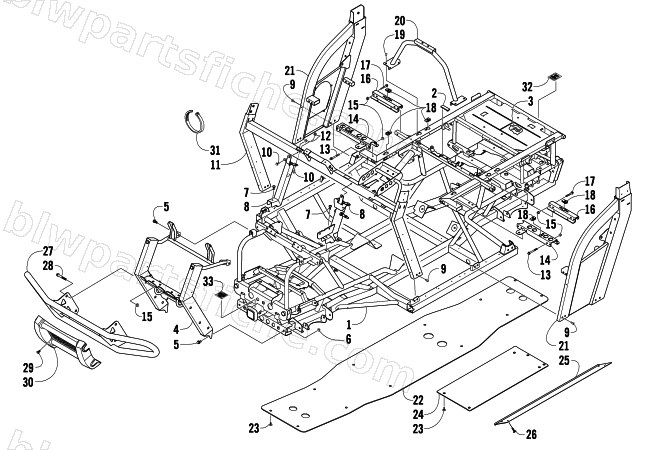

2009 Arctic Cat PROWLER 700 XTX 4X4 — FRAME AND RELATED PARTS
2009 PROWLER 700 XTX 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2516-497 | FRAME-FAB (PROWLER ST/MT) | 1 | $2,823.95 | |
| 2 | 0406-879 | BUMPER, SEAT | 1 | $3.71 | |
| 3 | 0412-461 | SHIELD,HEAT-CHASSIS | 1 | $15.11 | |
| 4 | 2516-558 | BUMPER,XT/X-PTD BLACK | 1 | $324.95 | |
| 5 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 6 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 7 | 8476-820 | SCREW,MACH-TSTRH M8X1.25X20 Z&Y | 1 | $0.95 | |
| 8 | 1506-797 | BRACKET,STEERING SUPPORT-PAINTED | 1 | $114.95 | |
| 8 | 0502-853 | BRACKET,STEERING SUPPORT-PAINTED | 1 | $140.95 | |
| 9 | 0423-817 | SCREW,MACH-TSTRH M8X1.25X20 CL8.8 W/LOCK | 1 | $1.50 | |
| 10 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 11 | 2506-436 | STEERING SUPPORT-BLACK | 1 | $461.95 | |
| 12 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 13 | 8408-870 | SCREW,CAP-HFH M8X1.25X70 CL8.8 Z&Y | 1 | $2.61 | |
| 14 | 1506-844 | BRACKET,SEAT-SUPPORT-FRONT-RH-PTD BLK | 1 | $62.95 | |
| 14 | 1506-845 | BRACKET,SEAT-SUPPORT-FRONT-LH-PTD BLK | 1 | $64.95 | |
| 15 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 16 | 1506-842 | BRACKET,SEAT-SUPPORT-REAR-PAINTED BLK | 1 | $23.39 | |
| 17 | 8408-850 | SCREW,CAP-HFH M8X1.25X50 CL8.8 Z&Y | 1 | $1.09 | |
| 18 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 19 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 20 | 2506-638 | CANOPY SUPPORT-BLACK | 1 | $108.95 | |
| 21 | 2506-634 | SUPPORT,OVERHEAD-RH-BLACK | 1 | $324.95 | |
| 21 | 2506-635 | SUPPORT,OVERHEAD-LH-BLACK | 1 | $324.95 | |
| 22 | 1406-720 | PANEL,BELLY | 1 | $163.95 | |
| 23 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 | |
| 24 | 1406-721 | PANEL,BELLY-SIDE | 1 | $90.95 | |
| 25 | 2506-612 | PLATE,SKID-SIDE-BLACK | 1 | $96.95 | |
| 26 | 0423-849 | SCREW,SELFTAP-THFT STS12-24 X 3/4 AB Z&B | 1 | $0.95 | |
| 27 | 2506-779 | BUMPER,PUSH-PAINTED (BLACK) | 1 | $208.95 | |
| 28 | 8408-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 Z&Y | 1 | $1.37 | |
| 29 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 30 | 2406-713 | FASCIA,BUMPER-FRONT | 1 | $51.95 | |
| 31 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 32 | 1411-123 | DECAL,WARNING-TOWING RR | 1 | $5.65 | |
| 33 | 1411-122 | DECAL,WARNING-TOWING FR | 1 | $5.65 |
