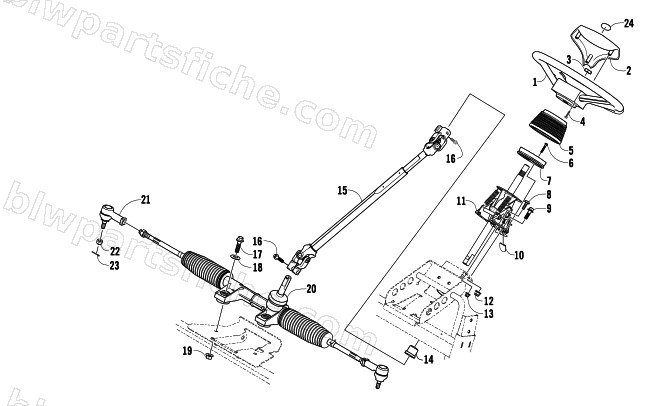

STEERING ASSEMBLY
2009 PROWLER 700 XTX 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0502-884 | WHEEL,STEERING-ASSEMBLY | 1 | $174.95 | |
| 2 | 0405-239 | COVER,WHEEL | 1 | $30.95 | |
| 3 | 1670-477 | NUT,HEX - M16 X 2.0 Z&C | 1 | $0.95 | |
| 4 | 0423-613 | SCREW,SELF TAP-TSPNH#8-18X3/4 T-20 SS | 1 | $1.09 | |
| 5 | 0405-270 | BOOT,TILT STEERING | 1 | $52.95 | |
| 6 | 0423-743 | SCREW,SELF-TAP M4X0.7X25 | 1 | $0.68 | |
| 7 | 0405-258 | SUPPORT,BOOT | 1 | $12.35 | |
| 8 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 9 | 8408-825 | SCREW,CAP-HFH M8X1.25X25 CL8.8 Z&Y | 1 | $1.23 | |
| 10 | 2406-590 | CAP,TILT LEVER | 1 | $2.06 | |
| 11 | 0505-886 | MECHANISM, TILT (YELLOW ZINC SHAFT) | 1 | $393.95 | |
| 12 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 13 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 14 | 0405-155 | BUSHING,STEERING | 1 | $10.97 | |
| 15 | 0405-156 | SHAFT, LOWER STEERING - ASSEMBLY | 1 | $283.95 | |
| 16 | 0423-655 | BOLT,PINCH(M10X1.5) | 1 | $2.06 | |
| 17 | 8409-050 | SCREW,CAP-HFH M10X1.25X50 CL10.9 Z&Y | 1 | $1.92 | |
| 18 | 0623-728 | WSHR, FLAT-HARD(.469 X 1.125 X .100 THK) | 1 | $3.02 | |
| 19 | 8424-002 | NUT,HEX-FLG M10X1.25 CL8 Z&Y | 1 | $0.68 | |
| 20 | 0505-650 | KIT,STEERING ASSY-RACK AND PINION | 1 | $819.95 | |
| 21 | 0505-743 | ROD END KIT-STEERING RACK | 1 | $47.95 | |
| 22 | 0423-072 | NUT,HEX CASTLE M10-1.25 | 1 | $2.61 | |
| 23 | 0623-175 | PIN,COTTER 3/32 X 1 | 1 | $0.40 | |
| 24 | 1411-798 | DECAL,STEERING WHEEL | 1 | $10.97 |
