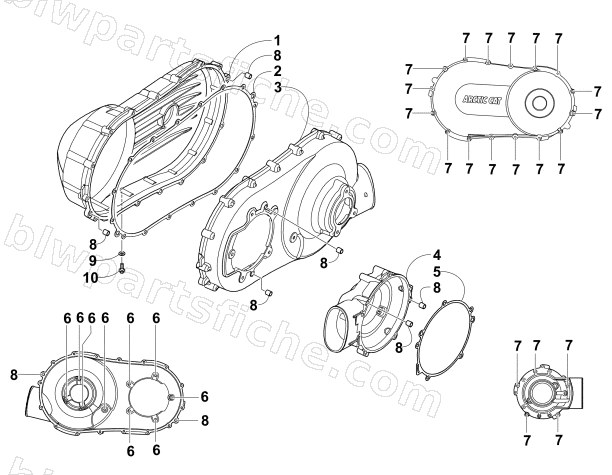

2009 Arctic Cat THUNDERCAT EFI 4X4 AUTO FIS SE — CLUTCH SIDE ENGINE COVERS
2009 THUNDERCAT EFI 4X4 AUTO FIS SE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0806-112 | COVER,CVT,OUTSIDE,VTWIN-MACH | 1 | $314.95 | |
| 2 | 0830-137 | GASKET,CVT COVER,VTWIN | 1 | $30.95 | |
| 3 | 0806-067 | COVER,CVT,INSIDE,VTWIN-MACH | 1 | $238.95 | |
| 4 | 0806-064 | COVER,CLUTCH,VTWIN-MACH | 1 | $412.95 | |
| 5 | 0830-219 | KIT,CENTRIF CLUTCH COVER GASKET | 1 | $23.39 | |
| 6 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 | |
| 7 | 8468-630 | SCREW,MACH-TSPNH M6X1.0X30 CL8.8 BLK | 1 | $0.68 | |
| 8 | 0829-062 | DOWEL,SLEEVE-OD8 X L7 | 1 | $1.50 | |
| 9 | 0830-013 | WASHER,CRUSH, 8 x 16 x 1 | 1 | $1.09 | |
| 10 | 8408-812 | SCREW,CAP-HFH M8X1.25X12 CL8.8 Z&Y | 1 | $1.78 |
