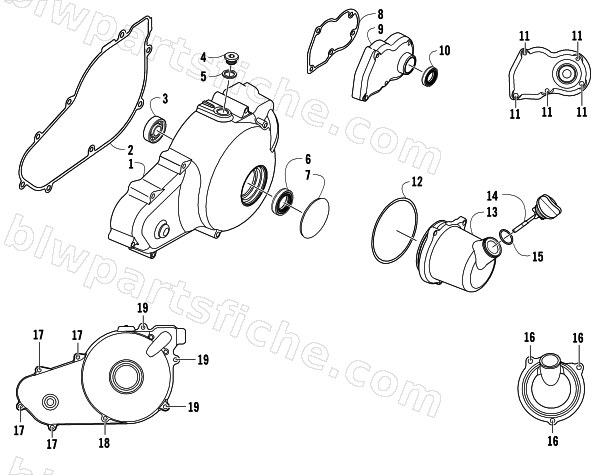

2009 Arctic Cat THUNDERCAT EFI 4X4 AUTO FIS SE — MAGNETO SIDE ENGINE COVERS
2009 THUNDERCAT EFI 4X4 AUTO FIS SE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0806-151 | COVER,KURT,MAG-MACH | 1 | $133.95 | |
| 2 | 0830-132 | GASKET,MAGNETO COVER,VTWIN | 1 | $12.35 | |
| 3 | 0832-060 | BEARING,BALL-S/R 17X47X14 | 1 | $26.95 | |
| 4 | 0806-022 | PLUG, TDC CHECK | 1 | $38.95 | |
| 5 | 0830-015 | WASHER, CRUSH, 16 x 22 x 2 | 1 | $1.92 | |
| 6 | 0830-176 | SEAL,CAN,47X16X5.5 | 1 | $20.63 | |
| 7 | 0806-066 | CAP,MAGNETO COVER,VTWIN | 1 | $3.57 | |
| 8 | 0830-161 | GASKET,GEAR SHIFT COVER, VTWIN | 1 | $3.02 | |
| 9 | 0818-070 | COVER,GEAR SHIFT,VTWIN-MACH | 1 | $79.95 | |
| 10 | 0830-044 | SEAL, SUB-GEAR SHIFT | 1 | $4.54 | |
| 11 | 8468-630 | SCREW,MACH-TSPNH M6X1.0X30 CL8.8 BLK | 1 | $0.68 | |
| 12 | 0830-162 | O-RING,OIL FILLER COVER, VTWIN | 1 | $3.02 | |
| 13 | 0801-081 | COVER,OIL FILLER,VTWIN-MACH | 1 | $126.95 | |
| 14 | 0801-073 | STICK,OIL LEVEL | 1 | $26.95 | |
| 15 | 0830-010 | O-RING, 17 ID X 3.2 W | 1 | $3.44 | |
| 16 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 17 | 8468-650 | SCREW,MACH-TSPNH M6X1.0X50 CL8.8 BLK | 1 | $1.78 | |
| 18 | 8468-695 | SCREW,MACH-TSPNH M6X1.0X95 CL8.8 BLK | 1 | $2.75 | |
| 19 | 8468-665 | SCREW,MACH-TSPNH M6X1.0X65 CL8.8 BLK | 1 | $1.23 |
