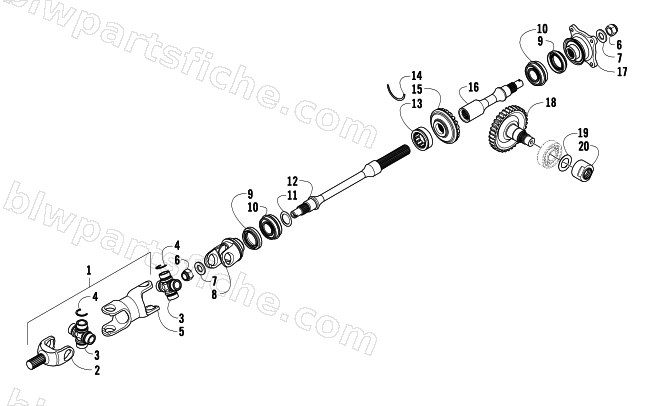

2009 Arctic Cat THUNDERCAT EFI 4X4 AUTO FIS SE — SECONDARY DRIVE ASSEMBLY (ENGINE SERIAL NO. 0950T10142250 AND UP)
2009 THUNDERCAT EFI 4X4 AUTO FIS SE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1502-341 | DRIVESHAFT,FRONT-BLACK | 1 | $169.95 | |
| 2 | 1402-701 | YOKE,SLIP,25MM-MACHINED | 1 | $71.95 | |
| 3 | 0402-944 | CROSS, UNIVERSAL (25mm) - SET | 1 | $30.95 | |
| 4 | 0423-395 | RETAINER,CROSS | 1 | $2.75 | |
| 6 | 0827-013 | NUT,HEX SHOULDER M16X1.5 | 1 | $3.02 | |
| 7 | 0828-020 | WASHER, STEEL, 16.3 x 30 x 3 | 1 | $3.30 | |
| 8 | 1502-325 | YOKE,END(25mm)-ASSEMBLY | 1 | $94.95 | |
| 9 | 0830-043 | SEAL,OIL-DRIVEN SHAFT | 1 | $6.89 | |
| 10 | 0832-017 | R/B 0832-107 | 1 | $125.95 | |
| 11 | 0828-021 | SHIM, 25 x 34 x .25 | 1 | $2.47 | |
| 11 | 0828-022 | SHIM, 25 x 34 x .30 | 1 | $8.21 | |
| 11 | 0828-023 | SHIM, 25 X 34 X 0.35 MM | 1 | $17.87 | |
| 11 | 0828-024 | SHIM,. 25 x 34 x .90 | 1 | $17.87 | |
| 11 | 0828-025 | SHIM, 25 x 34 x .95 | 1 | $17.87 | |
| 11 | 0828-026 | SHIM, 25 x 34 x 1.00 | 1 | $17.87 | |
| 11 | 0828-027 | SHIM, 25 x 34 x 1.05 | 1 | $17.87 | |
| 11 | 0828-028 | SHIM, 25 x 34 x 1.10 | 1 | $16.49 | |
| 11 | 0828-029 | SHIM, 25 x 34 x 1.15 | 1 | $17.87 | |
| 12 | 0819-089 | SHAFT,SECONDARY DRIVEN-FRONT | 1 | $217.95 | |
| 13 | 0832-016 | BEARING, DRIVEN GEAR | 1 | $50.95 | |
| 14 | 0819-011 | RING, DRIVEN BEARING | 1 | $17.87 | |
| 15 | 0822-106 | GEAR,SECONDARY DRIVEN (GB-DN) | 1 | $129.95 | |
| 16 | 0819-053 | SHAFT, SECONDARY DRIVEN - REAR | 1 | $82.95 | |
| 17 | 0819-005 | FLANGE, OUTPUT JOINT - REAR, ASSEMBLY | 1 | $69.95 | |
| 18 | 0822-147 | KIT,GEAR SECONDARY-H2 | 1 | $541.95 | |
| 19 | 0828-119 | SHIM,30 X 48 X .25 | 1 | $5.92 | |
| 19 | 0828-120 | SHIM,30 X 48 X .30 | 1 | $5.92 | |
| 19 | 0828-121 | SHIM,30 X 48 X .35 | 1 | $16.49 | |
| 19 | 0828-122 | SHIM,30 X 48 X .90 | 1 | $16.49 | |
| 19 | 0828-123 | SHIM,30 X 48 X .95 | 1 | $16.49 | |
| 19 | 0828-124 | SHIM,30 X 48 X 1.00 | 1 | $16.49 | |
| 19 | 0828-125 | SHIM,30 X 48 X 1.05 | 1 | $16.49 | |
| 19 | 0828-126 | SHIM,30 X 48 X 1.10 | 1 | $10.97 | |
| 19 | 0828-127 | SHIM,30 X 48 X 1.15 | 1 | $19.25 | |
| 20 | 0827-060 | NUT,SECONDARY DRIVE (H2) | 1 | $17.87 |
