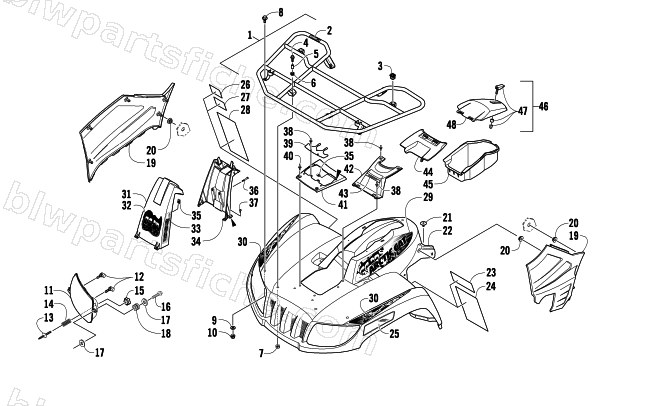

2010 Arctic Cat 1000 4X4 AUTOMATIC MUD PRO — FRONT RACK, BODY PANEL, AND HEADLIGHT ASSEMBLIES
2010 1000 4X4 AUTOMATIC MUD PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-643 | RACK,FRONT-ASSEMBLY (W/O FENCE) | 1 | $324.95 | |
| 2 | 0411-576 | DECAL,WARNING-TRV RACK (100 LB.) | 1 | $24.77 | |
| 3 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 4 | 8410-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE BLK | 1 | $1.09 | |
| 5 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 6 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 7 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 8 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 9 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 10 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 11 | 0509-044 | HEADLIGHT,RH-ASSY | 1 | $163.95 | |
| 11 | 0509-035 | HEADLIGHT, LH - ASSY | 1 | $163.95 | |
| 12 | 0409-055 | BULB,HEADLIGHT-881 | 1 | $20.95 | |
| 13 | 0423-514 | STUD,DOUBLE END-M5X.8 | 1 | $4.95 | |
| 14 | 0423-522 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $1.92 | |
| 15 | 0423-513 | KNOB,ADJUSTMENT-M5 | 1 | $5.65 | |
| 16 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 | |
| 17 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 18 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 | |
| 19 | 2406-802 | PANEL,SIDE-RH(TRV H2) | 1 | $66.95 | |
| 19 | 2406-803 | PANEL,SIDE-LH(TRV H2) | 1 | $82.95 | |
| 20 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 21 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 22 | 2516-607 | FENDER,FRONT-S.D.WHITE-ASSY | 1 | $799.95 | |
| 23 | 1411-574 | DECAL,WARNING-OFF ROAD ONLY | 1 | $3.30 | |
| 24 | 2411-124 | DECAL,WARNING-GENERAL 16 | 1 | $39.95 | |
| 25 | 0411-818 | REFLECTOR,FRONT-RH | 1 | $6.47 | |
| 25 | 0411-819 | REFLECTOR,FRONT-LH | 1 | $6.47 | |
| 26 | 0411-835 | DECAL,WARNING HILL | 1 | $4.95 | |
| 27 | 1411-906 | DECAL,WARNING-THROTTLE | 1 | $16.49 | |
| 28 | 1411-250 | DECAL,WARNING-PRE RIDE(AE) | 1 | $12.35 | |
| 29 | 2411-126 | DECAL,GRAPHIC-UPPER SIDE-1000 MP-RH | 1 | $54.95 | |
| 29 | 2411-127 | DECAL,GRAPHIC-UPPER SIDE-1000 MP-LH | 1 | $14.95 | |
| 30 | 2411-128 | DECAL,GRAPHIC-FRONT SIDE-1000 MP-RH | 1 | $40.95 | |
| 30 | 2411-129 | DECAL,GRAPHIC-FRONT SIDE-1000 MP-LH | 1 | $40.95 | |
| 31 | 2516-683 | COVER,SNORKEL FRONT S.D.WHITE-PTD | 1 | $94.95 | |
| 32 | 2411-132 | DECAL,GRAPHIC-"MUD PRO"-RH/LH | 1 | $12.35 | |
| 33 | 2411-125 | DECAL,GRAPHIC,SNORKEL-1000 MP-RH/LH | 1 | $27.95 | |
| 34 | 2516-684 | COVER,SNORKEL REAR S.D.WHITE-PTD | 1 | $94.95 | |
| 35 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 36 | 8468-645 | SCREW,MACH-TSPNH M6X1.0X45 CL8.8 BLK | 1 | $1.23 | |
| 37 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 | |
| 38 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 39 | 2416-100 | SHIELD,SPLASH | 1 | $10.97 | |
| 40 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 41 | 2516-170 | COVER,RADIATOR ACCESS-ROUTED | 1 | $33.95 | |
| 42 | 1406-484 | COVER,STEERING POST | 1 | $17.87 | |
| 43 | 1411-050 | DECAL,SPEEDRACK | 1 | $1.78 | |
| 44 | 0470-513 | COVER, STORAGE BOX | 1 | $22.01 | |
| 45 | 1406-573 | BOX,STORAGE | 1 | $26.95 | |
| 46 | 2506-234 | LID,STORAGE BOX-W/LATCH | 1 | $32.95 | |
| 47 | 1406-599 | LATCH,SWELL (SOUTHCO) | 1 | $17.87 | |
| 48 | 0470-514 | LID, STORAGE BOX | 1 | $24.77 |
