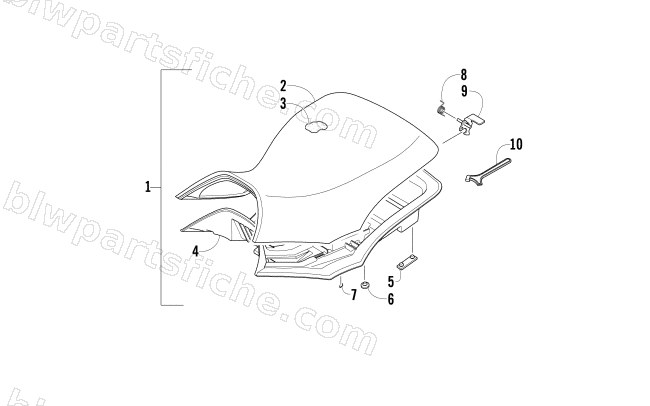

2010 Arctic Cat 1000 4X4 AUTOMATIC MUD PRO — SEAT ASSEMBLY
2010 1000 4X4 AUTOMATIC MUD PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2516-253 | SEAT-ASSEMBLY (BT MP) | 1 | $292.95 | |
| 2 | 1506-209 | COVER, SEAT | 1 | $129.95 | |
| 3 | 1506-208 | FOAM, SEAT-MOLDED | 1 | $120.95 | |
| 4 | 2416-827 | BASE,SEAT (H2) | 1 | $66.95 | |
| 5 | 0406-879 | BUMPER, SEAT | 1 | $3.71 | |
| 6 | 0406-877 | BUMPER,SEAT | 1 | $3.57 | |
| 7 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 8 | 1406-592 | SPRING,LATCH | 1 | $1.78 | |
| 9 | 1506-156 | LATCH,SEAT-WELDMENT | 1 | $30.95 | |
| 10 | 0441-587 | WRENCH,SPANNER-66MM | 1 | $4.95 |
