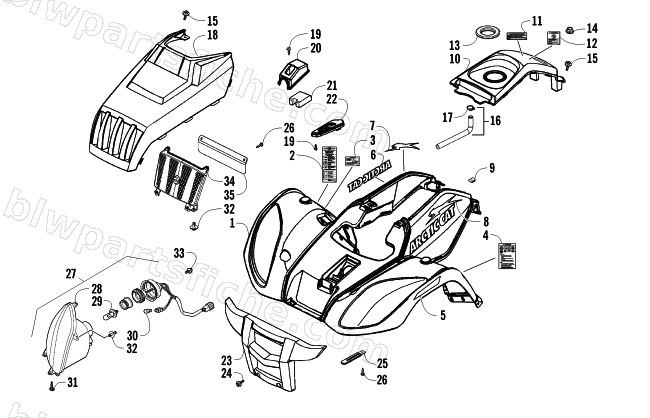

2010 Arctic Cat 150 2X4 UTILITY — FRONT BODY PANEL AND HEADLIGHT ASSEMBLIES
2010 150 2X4 UTILITY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-103 | FENDER FRONT (RED) W/DECALS | 1 | $188.95 | |
| 2 | 1411-943 | DECAL, PRE-RIDE INSPECTION | 1 | $26.95 | |
| 3 | 0411-836 | DECAL,WARNING HILL (MINI) | 1 | $82.95 | |
| 4 | 1411-932 | DECAL,WARNING-GENERAL | 1 | $12.35 | |
| 5 | 1411-180 | REFLECTOR,FRONT-RH | 1 | $13.73 | |
| 5 | 1411-181 | REFLECTOR,FRONT-LH | 1 | $13.73 | |
| 6 | 1411-976 | DECAL,TANK-RH "ARCTIC CAT" | 1 | $5.65 | |
| 7 | 1411-978 | DECAL,TANK-RH "AIRCAT" | 1 | $5.09 | |
| 8 | 1411-637 | DECAL,SIDE-ARCTIC CAT-LH(50/90/150/250) | 1 | $42.95 | |
| 9 | 3304-061 | NUT CLIP 5MM | 1 | $2.33 | |
| 10 | 3306-104 | COVER TANK(RED) W/DECALS | 1 | $47.95 | |
| 11 | 1411-577 | DECAL,WARNING-OFF ROAD ONLY | 1 | $50.95 | |
| 12 | 1411-377 | DECAL,WARNING-AGE (14) | 1 | $16.49 | |
| 13 | 3303-721 | TRAY TANK COVER | 1 | $10.97 | |
| 14 | 3303-331 | NUT FLANGE 6MM | 1 | $0.55 | |
| 15 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 | |
| 16 | 3305-701 | TUBE ASSY FUEL DRAIN | 1 | $3.71 | |
| 17 | 3303-349 | CLIP B10 TUBE | 1 | $0.95 | |
| 18 | 3305-697 | COVER FRONT (RED) | 1 | $69.95 | |
| 19 | 3304-650 | SCREW TAPPING 5*16 (CIRCLE HEAD) | 1 | $1.50 | |
| 20 | 3305-926 | COVER CVT ELEMENT | 1 | $2.88 | |
| 21 | 3305-096 | CVT ELEMENT | 1 | $3.30 | |
| 22 | 3305-092 | GUIDE COVER CHANGE HANDLE | 1 | $6.34 | |
| 23 | 3306-148 | COVER BUMPER,FRONT (FRONT BUMPER/FASCIA) | 1 | $42.95 | |
| 24 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 25 | 3304-156 | CLIP 2*70 | 1 | $1.92 | |
| 26 | 3304-651 | SCREW TAPPING 4*12 | 1 | $1.09 | |
| 27 | 3303-844 | LIGHT ASSY R HEAD | 1 | $164.95 | |
| 27 | 3303-845 | LIGHT ASSY L HEAD | 1 | $187.95 | |
| 28 | 3304-643 | UNIT HEAD LIGHT RH | 1 | $129.95 | |
| 28 | 3304-644 | UNIT HEAD LIGHT LH | 1 | $174.95 | |
| 29 | 3303-846 | BULB HEAD LIGHT | 1 | $42.95 | |
| 30 | 3303-847 | BULB POSITION LIGHT 12V5W | 1 | $5.65 | |
| 31 | 3304-122 | SCREW TAPPING 5*12 use 3304-645 | 1 | $0.55 | |
| 32 | 3304-057 | CLIP FENDER | 1 | $1.92 | |
| 34 | 3305-095 | GRILLE FRONT (RED) | 1 | $12.35 | |
| 35 | 3305-925 | FENDER,INNER | 1 | $6.47 |
