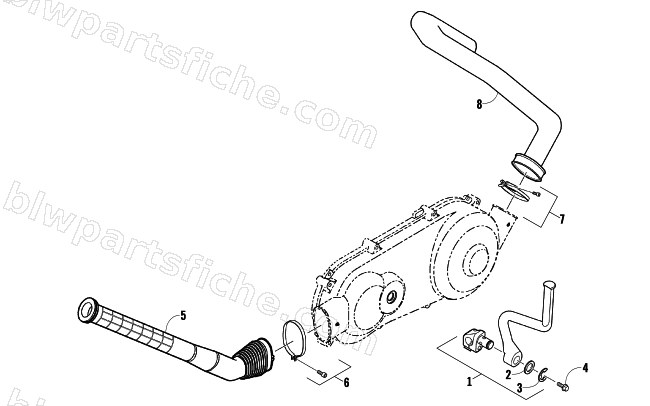

2010 Arctic Cat 150 2X4 UTILITY — KICK STARTER AND COOLING DUCT ASSEMBLY
2010 150 2X4 UTILITY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-549 | ARM ASSY KICK STARTER | 1 | $54.95 | |
| 2 | 3305-195 | WASHER PLAIN 13MM | 1 | $0.81 | |
| 3 | 3305-247 | E-RING 10mm | 1 | $1.78 | |
| 4 | 3304-551 | BOLT FLANGE 6*22 | 1 | $0.81 | |
| 5 | 3305-235 | DUCT L COVER | 1 | $23.39 | |
| 6 | 3303-635 | BAND L COVER DUCT | 1 | $5.37 | |
| 7 | 3303-636 | BAND L COVER | 1 | $5.92 | |
| 8 | 3305-234 | DUCT B L COVER | 1 | $37.95 |
