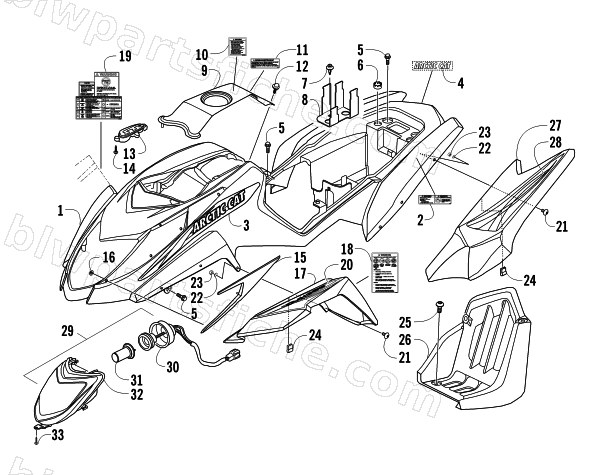

2010 Arctic Cat 300 2X4 DVX — BODY PANEL AND HEADLIGHT ASSEMBLY
2010 300 2X4 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-114 | BODY ASSY,MAIN (BLACK W/ DECALS) | 1 | $220.95 | |
| 2 | 2411-256 | DECAL,TIRE PRESSURE/PASSENGER | 1 | $3.30 | |
| 3 | 1411-972 | DECAL,TANK-RH (DVX 300) | 1 | $41.95 | |
| 3 | 1411-973 | DECAL,TANK-LH (DVX 300) | 1 | $29.95 | |
| 4 | 0411-762 | DECAL,"ARCTIC CAT"-WHT | 1 | $3.95 | |
| 5 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 6 | 3303-232 | RUBBER REAR FENDER | 1 | $1.92 | |
| 7 | 3304-057 | CLIP FENDER | 1 | $1.92 | |
| 8 | 3304-339 | STAY START MAG SW | 1 | $29.95 | |
| 9 | 3306-111 | COVER ASSY,TANK (BLACK W/DECALS) | 1 | $37.95 | |
| 10 | 1411-109 | DECAL,WARNING-REVERSE | 1 | $10.97 | |
| 11 | 1411-577 | DECAL,WARNING-OFF ROAD ONLY | 1 | $50.95 | |
| 12 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 | |
| 13 | 3304-381 | GUIDE COVER CHANGE HANDLE | 1 | $16.49 | |
| 14 | 3304-650 | SCREW TAPPING 5*16 (CIRCLE HEAD) | 1 | $1.50 | |
| 15 | 3305-675 | PANEL R TRIM (WHITE) | 1 | $12.35 | |
| 15 | 3305-676 | PANEL L TRIM (WHITE) | 1 | $12.35 | |
| 16 | 3304-418 | NUT STAMPED | 1 | $1.23 | |
| 17 | 3306-112 | FENDER ASSY,R FRONT (WHITE W/DECALS) | 1 | $82.95 | |
| 17 | 3306-113 | FENDER ASSY,L FRONT (WHITE W/DECALS) | 1 | $82.95 | |
| 18 | 1411-932 | DECAL,WARNING-GENERAL | 1 | $12.35 | |
| 19 | 1411-945 | DECAL,WARNING-DVX PRE RIDE | 1 | $26.95 | |
| 20 | 1411-974 | DECAL,FR FENDER-RH (DVX 300) | 1 | $58.95 | |
| 20 | 1411-975 | DECAL,FR FENDER-LH (DVX 300) | 1 | $58.95 | |
| 21 | 3304-406 | BOLT SPECIAL 6*16 | 1 | $1.78 | |
| 22 | 3304-432 | WASHER PLAIN 7MM | 1 | $0.81 | |
| 23 | 3304-431 | NUT LOCK | 1 | $1.23 | |
| 24 | 3304-683 | CLIP FENDER MOUNTNG | 1 | $3.02 | |
| 25 | 3304-404 | BOLT SPECIAL 6*16 | 1 | $1.78 | |
| 26 | 3306-050 | MUDGUARD,R FLOOR | 1 | $50.95 | |
| 26 | 3306-051 | MUDGUARD,L FLOOR | 1 | $50.95 | |
| 27 | 3305-679 | FENDER R REAR (WHITE) | 1 | $58.95 | |
| 27 | 3305-680 | FENDER L REAR (WHITE) | 1 | $58.95 | |
| 28 | 1411-970 | DECAL,RR FENDER-RH (DVX) | 1 | $58.95 | |
| 28 | 1411-971 | DECAL,RR FENDER-LH (DVX) | 1 | $58.95 | |
| 29 | 3304-280 | LIGHT ASSY R HEAD | 1 | $203.95 | |
| 30 | 3304-282 | SOCKET COMP | 1 | $37.95 | |
| 31 | 3303-846 | BULB HEAD LIGHT | 1 | $42.95 | |
| 32 | 3304-281 | UNIT HEAD LIGHT | 1 | $180.95 |
