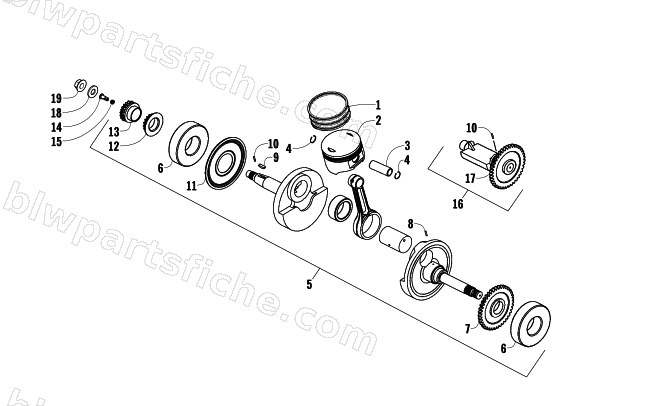

2010 Arctic Cat 300 2X4 DVX — PISTON AND CRANKSHAFT ASSEMBLY
2010 300 2X4 DVX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 3305-752 | ENGINE (SPORT 300) 2009 | 1 | $4,857.95 | |
| 1 | 3303-664 | RING SET PISTON | 1 | $79.95 | |
| 2 | 3305-625 | PISTON | 1 | $64.95 | |
| 3 | 3305-623 | PIN PISTON | 1 | $16.49 | |
| 4 | 3304-159 | CLIP PISTON PIN 17MM | 1 | $1.78 | |
| 5 | 3305-619 | CRANK SHAFT COMP | 1 | $1,075.95 | |
| 6 | 3304-420 | BRG BALL RADIAL 6307 | 1 | $122.95 | |
| 8 | 3304-962 | ROLLER 2*11.8 | 1 | $1.95 | |
| 9 | 3304-145 | WOODRUFF KEY 25*14 | 1 | $3.16 | |
| 10 | 3304-439 | ROLLER 4*8 | 1 | $1.23 | |
| 11 | 3305-328 | PLATE R CRANK SIDE | 1 | $5.95 | |
| 12 | 3304-236 | GEAR TIMING | 1 | $64.95 | |
| 13 | 3303-689 | GEAR OIL PUMP DRIVE | 1 | $66.95 | |
| 14 | 3303-693 | OIL THROUGH | 1 | $5.51 | |
| 15 | 3303-694 | SPG OIL THROUGH | 1 | $3.16 | |
| 16 | 3305-624 | SHAFT,COMP BALANCER | 1 | $180.95 | |
| 18 | 3304-036 | WASHER THRUST 14*28*2 | 1 | $1.50 | |
| 19 | 3304-024 | NUT,FLANGE 14MM | 1 | $2.33 |
